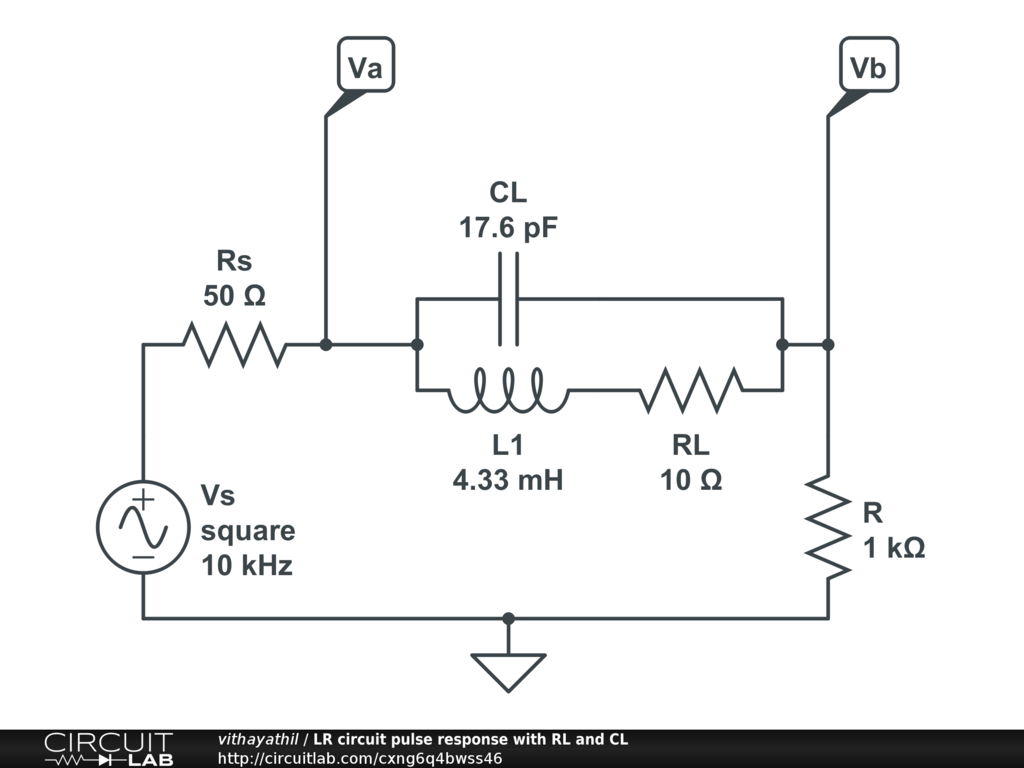

LR circuit with lab L of 4.33mH, series RL of 3.75ohms and CL of 17.6 measured from 3dB high frequency. The circuit is to illustrate the overshoot an undershoot from V1 seen at Va using a compensated probe. To see detail zoom in on the plot near the square wave edges.
