Two Positive Supplies +9V & +5V PUBLIC

Created by
Created March 03, 2026
Last modified 1 hour, 23 minutes ago
Tags 9v-supply

Summary

Two Positive DC Supplies +9V & +5V

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

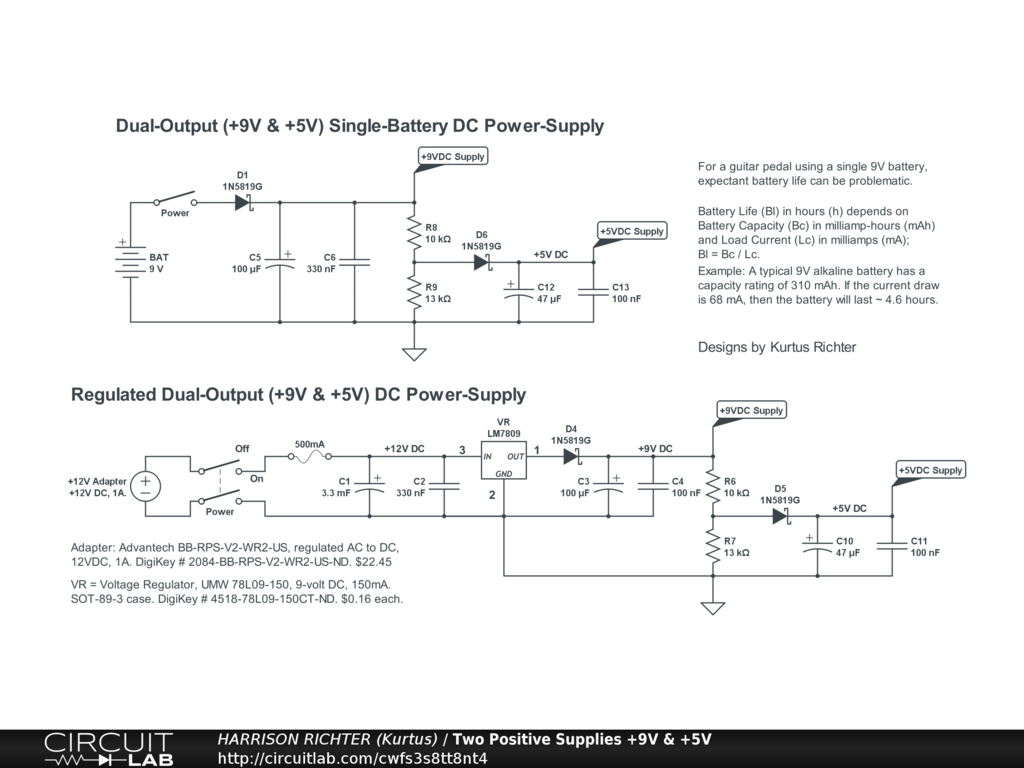

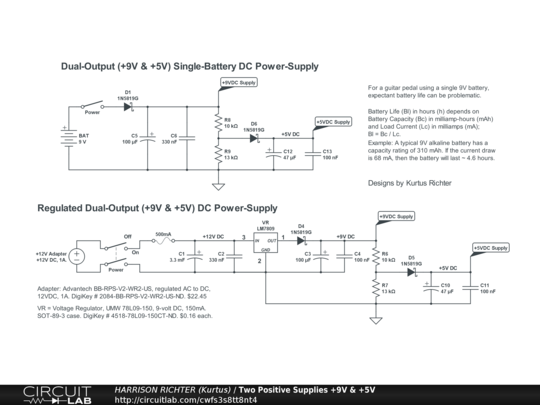

Two-output positive DC power-supplies providing +9VDC and +5VDC. Two circuits shown; one unregulated single battery supply and one regulated supply powered by a +12VDC wall-wart. For projects requiring both a +9VDC and a +5VDC supply.
