9V boost converter from AAA battery PUBLIC

Created by
Created January 19, 2014
Last modified November 04, 2014
Tags No tags.

Summary

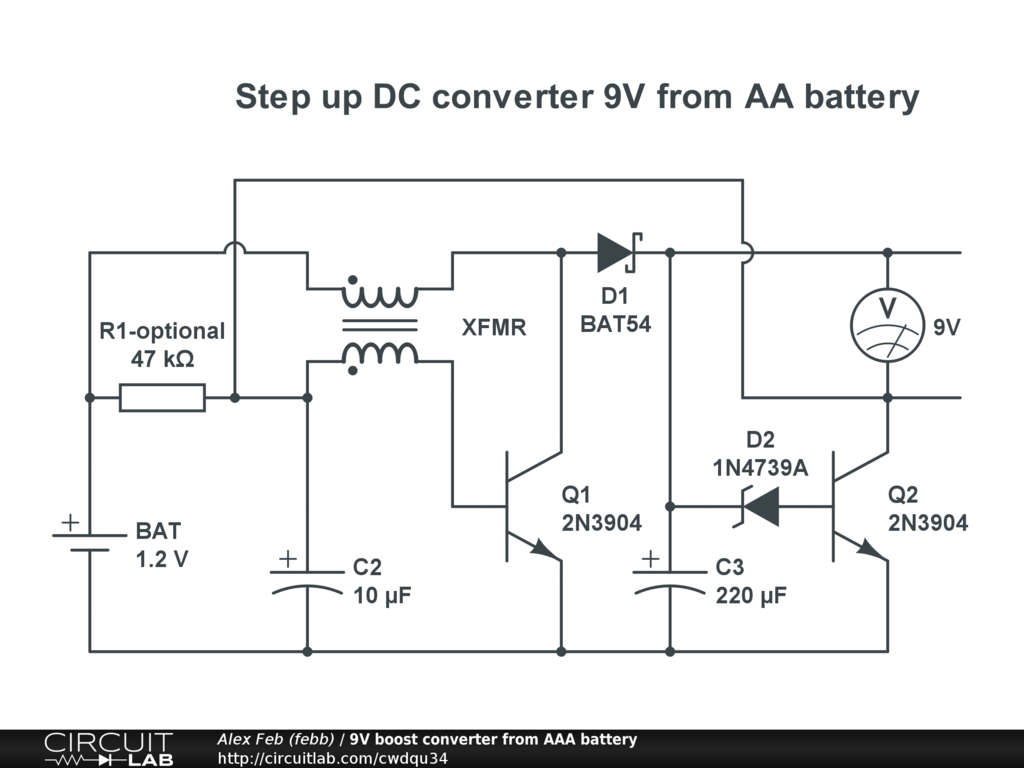

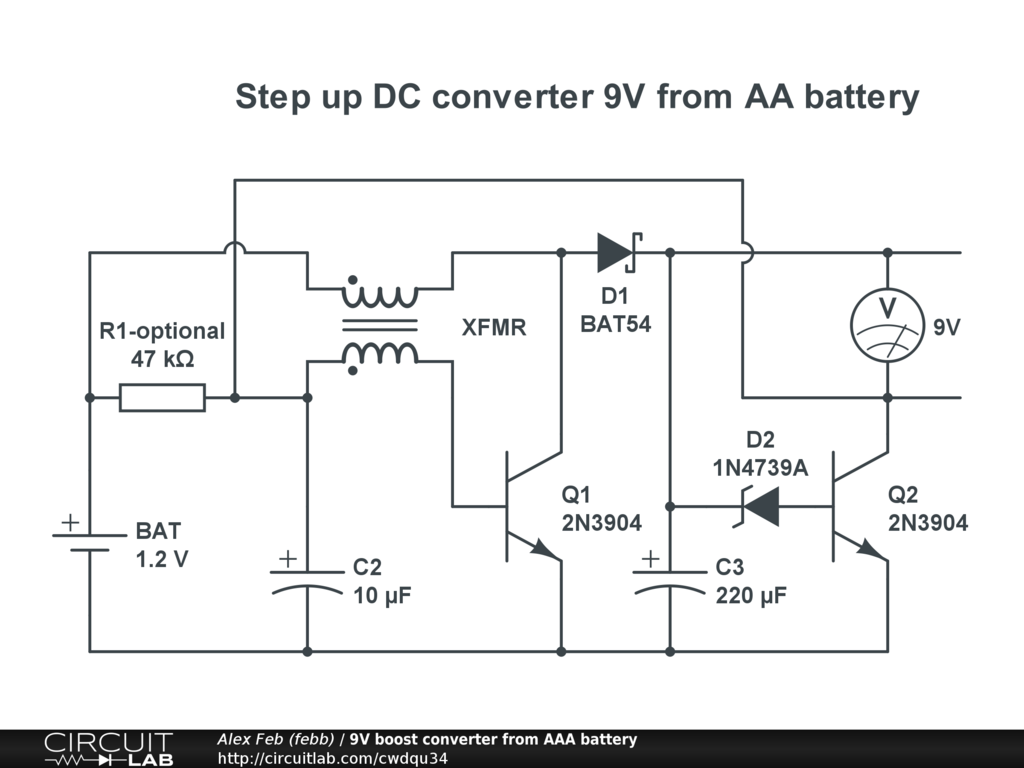

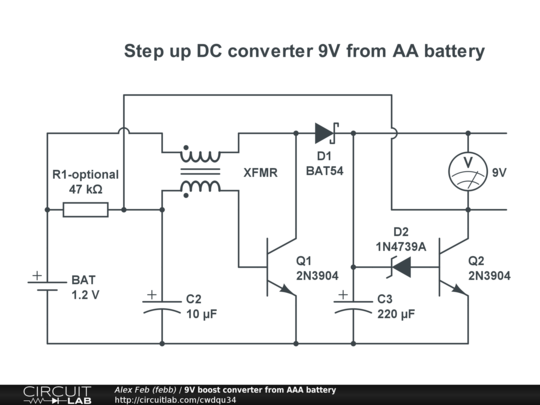

Simplistic discrete boost converter to get 9V out of single AA/AAA battery based on "joule thief" oscillator. Current sensor shutdowns circuit when no load. Idle current less then 1 uA!
