NPN & PNP Transistor Checker PUBLIC

Created by
Created September 25, 2012
Last modified September 25, 2012
Tags tester   tool   transistor

Summary

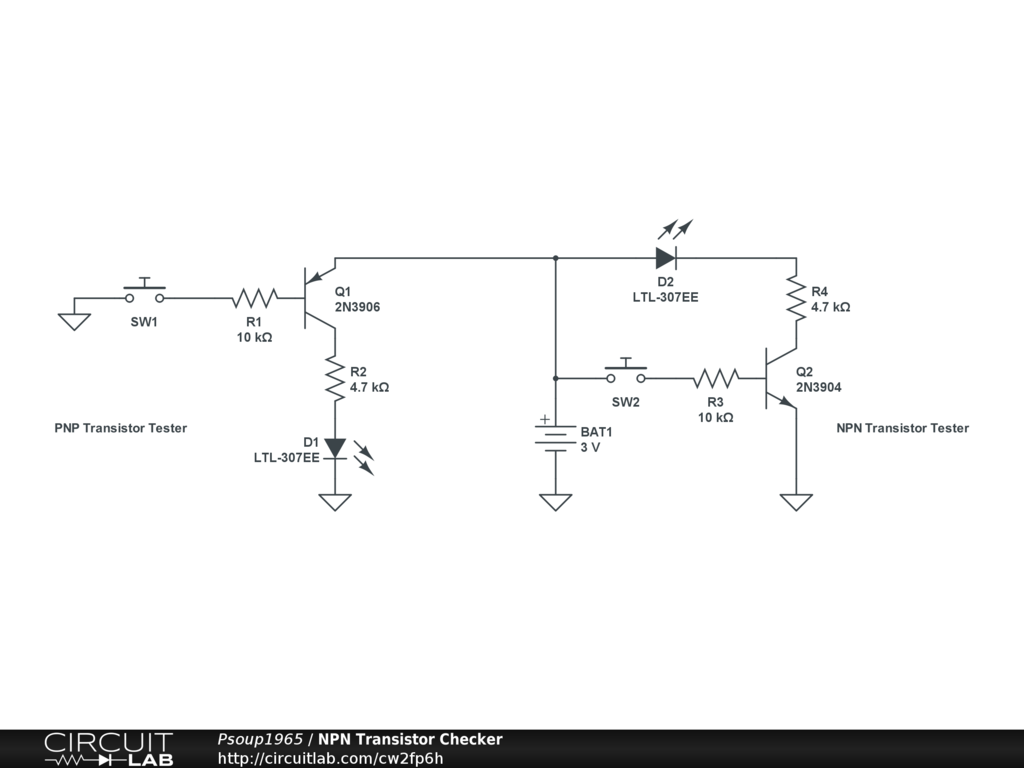

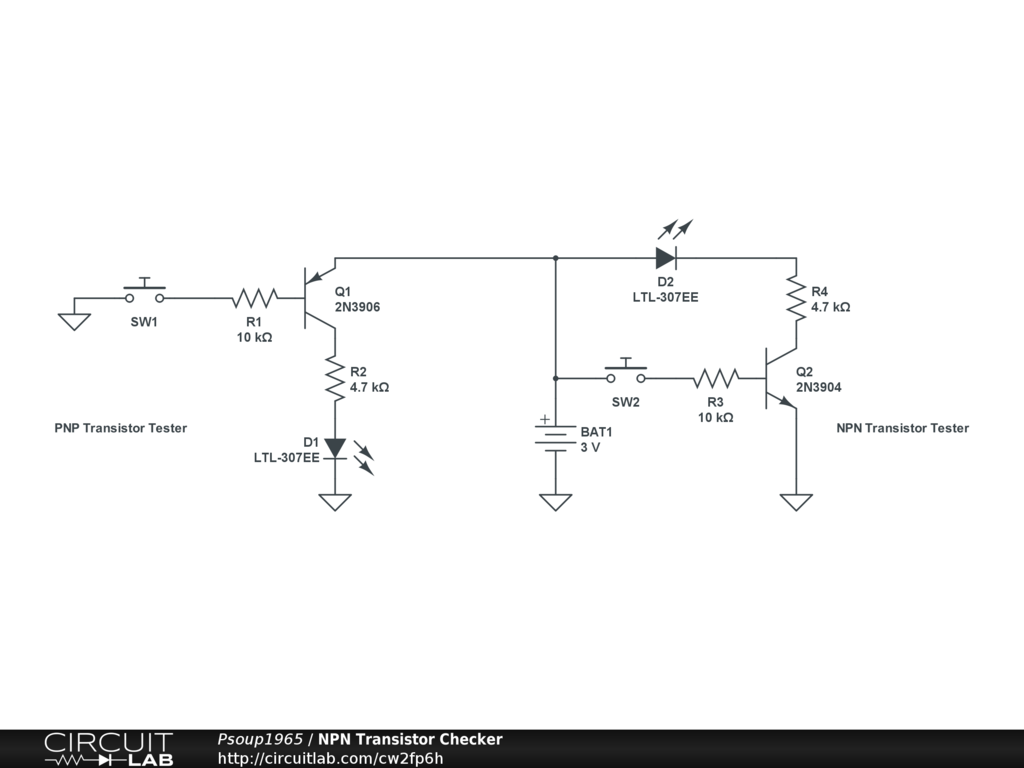

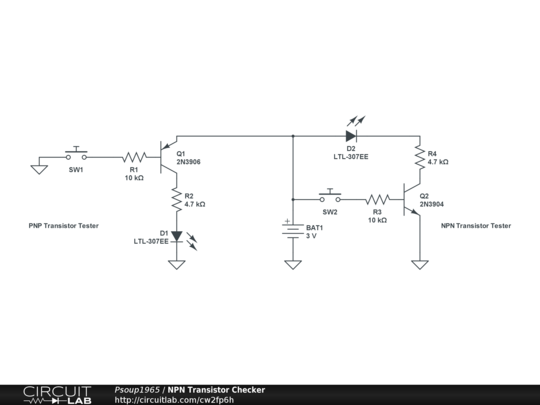

This is a very basic and easy to build transistor checker. Will check PNP and NPN Transistors. I recommend using DIP sockets so you can easily insert the Transistors for checking. Just replace (plug in) your transistor in place of mine.
