Summary

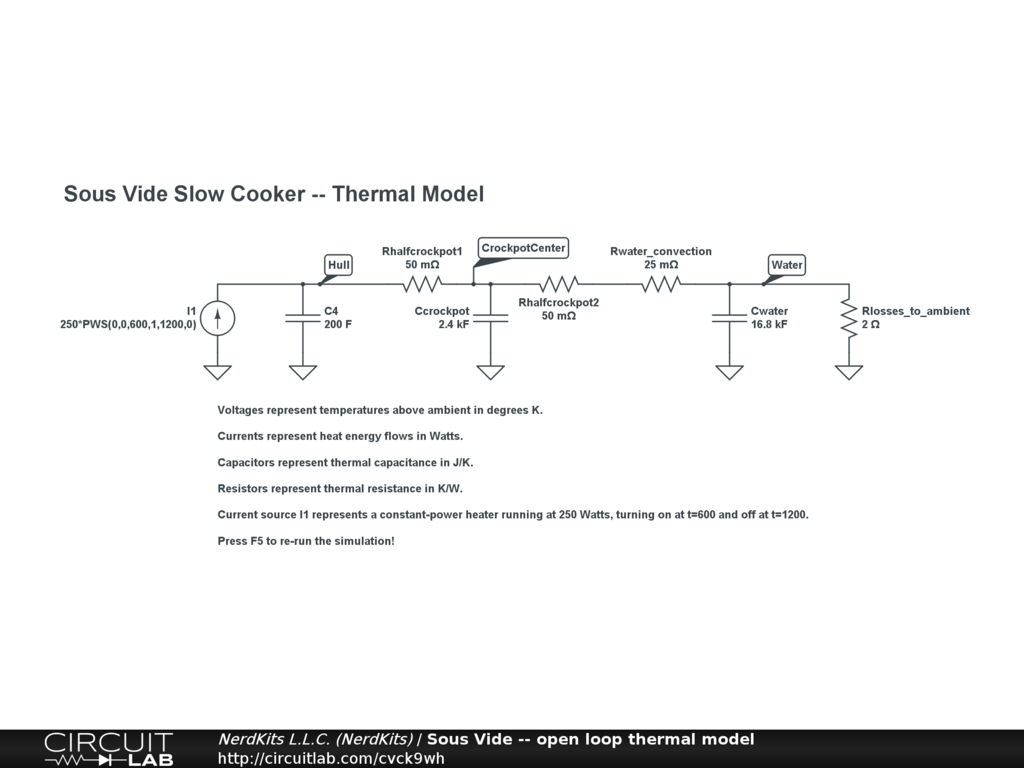

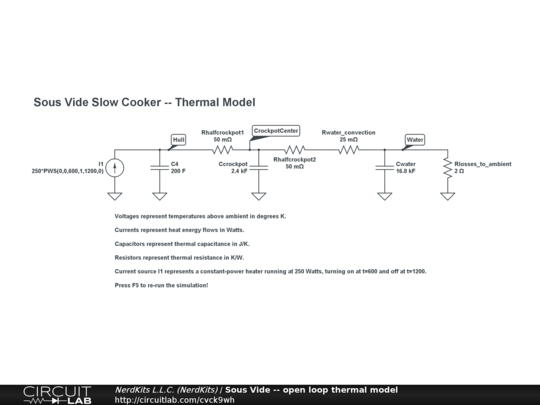

Simple thermal model of electric crock pot / slow cooker for NerdKits sous vide cooker.


Description

See http://www.nerdkits.com/videos/sous-vide/ -- including for calculations of each thermal resistance and thermal capacitance.

As is, current source I1 represents the 250 Watt heating element run for 10 minutes (from t=600 to t=1200). Open this in the editor and press F5 to see how the water temperature responds.
