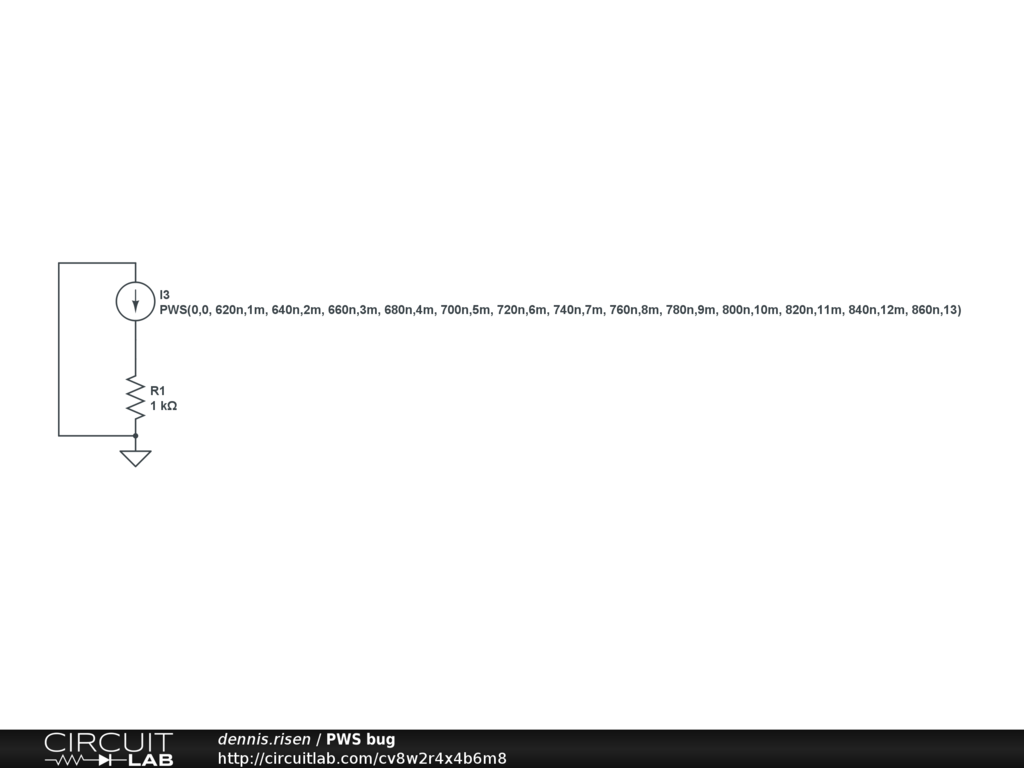

This circuit should produce a staircase voltage and current. However, it incorrectly produces one single big step instead.
The PWS function supplied to the current source accepts, without any error indication, more tuples than it apparently can successfully execute. The time simulation of a current source using PWS(....) is incorrect, without any error indication.
The simulation runs correctly when configuring the current source with: PWS(0,0, 620n,1m, 640n,2m, 660n,3m, 680n,4m, 700n,5m, 720n,6m, 740n,7m, 760n,8m, 780n,9m, 800n,10m, 820n,11m, 840n,12m), but fails to provide correct results when one more tuple is added, such as in: PWS(0,0, 620n,1m, 640n,2m, 660n,3m, 680n,4m, 700n,5m, 720n,6m, 740n,7m, 760n,8m, 780n,9m, 800n,10m, 820n,11m, 840n,12m, 860n,13m)
