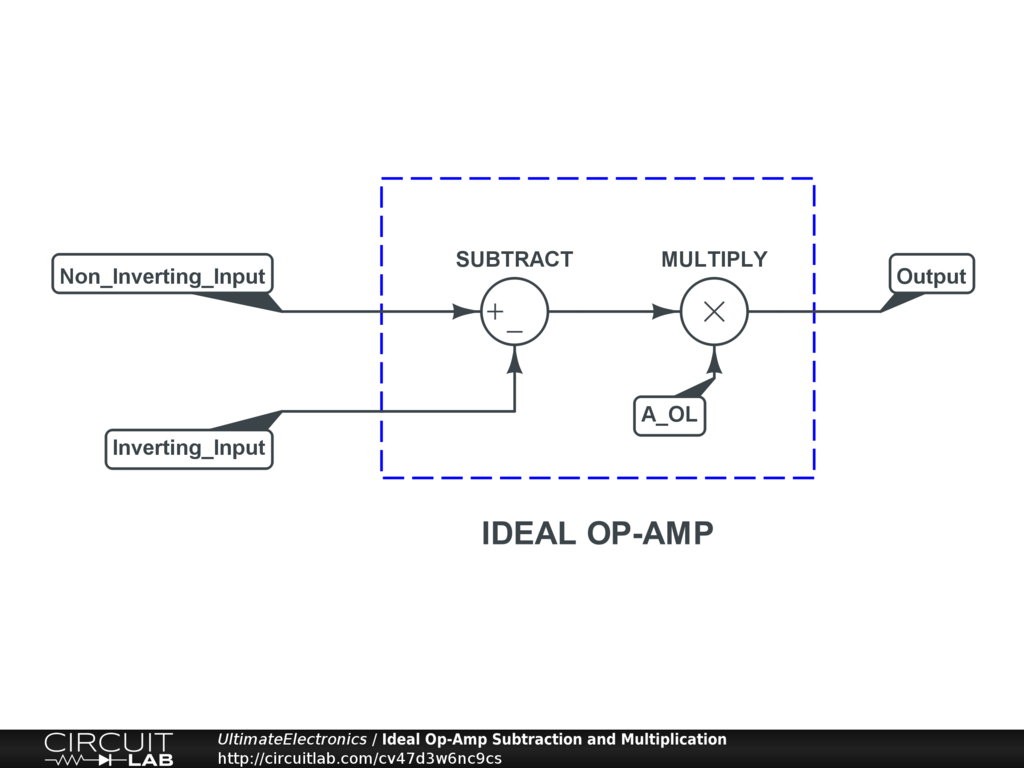

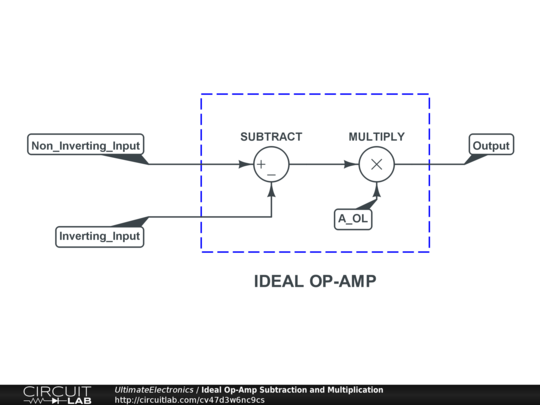

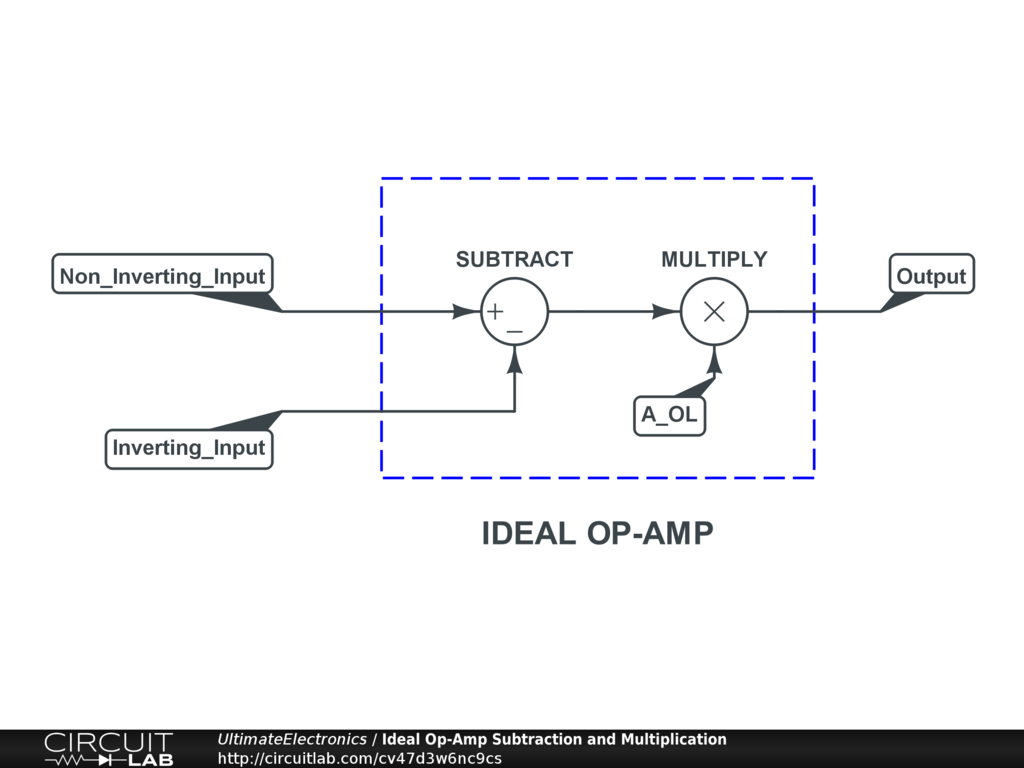

The ideal op-amp essentially produces its output voltage by subtracting the voltage difference between its inputs, and multiplying this difference by a large open-loop gain.
This example is from the The Ideal Op-Amp (Operational Amplifier) chapter of Ultimate Electronics Book.
The ideal op-amp essentially subtracts the voltage difference between its inputs, and multiplies this by a large open-loop gain A_OL, producing an output voltage.
