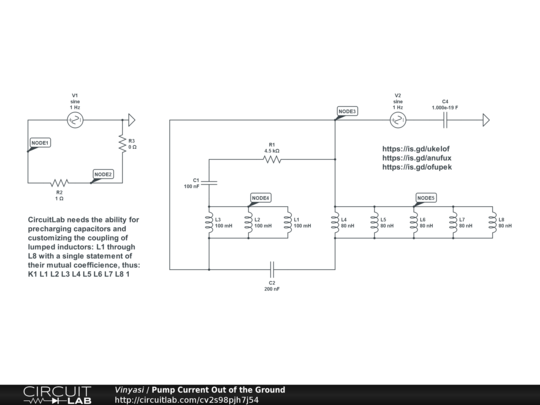

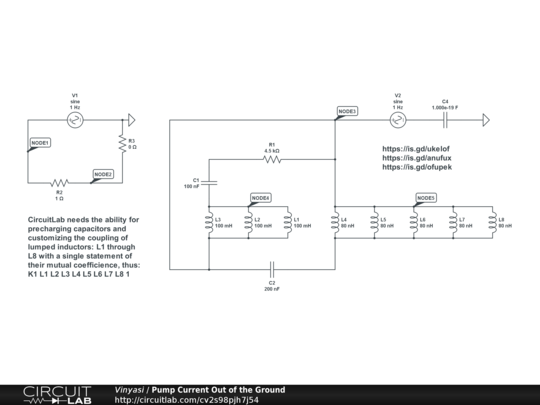

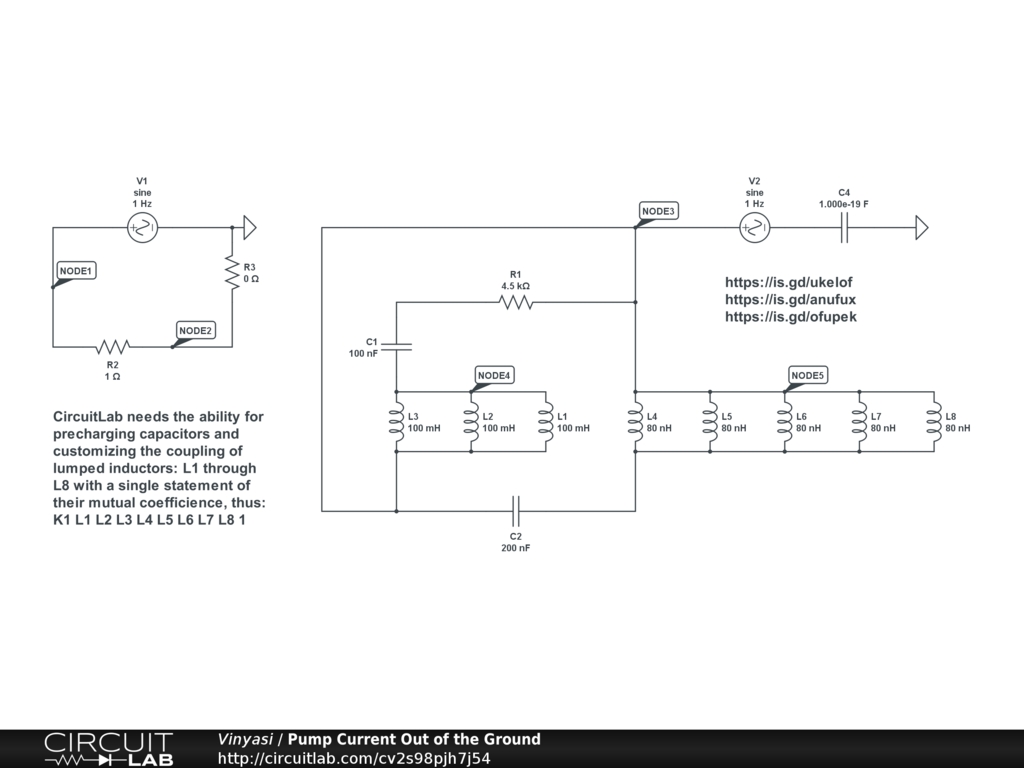

It would be a nice improvement to CircuitLab if we could create our own customized coupling statements for lumped inductors beyond the mere two provided by this software. Limiting us to two coils in a transformer model is nice, but more than two coils is better.


Sometimes, it's advantageous to divide up an inductor into multiples of a set to improve their performance. I wish CircuitLab would allow a coupling statement of multiple inductors plus their mutual coupling percentage.
