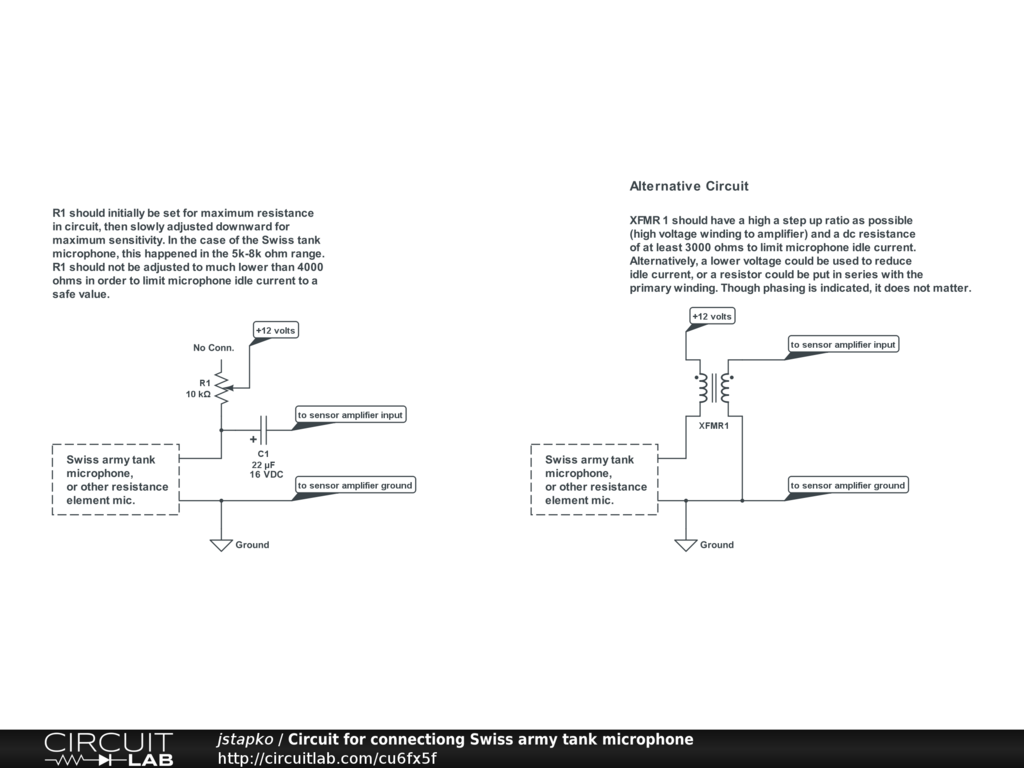

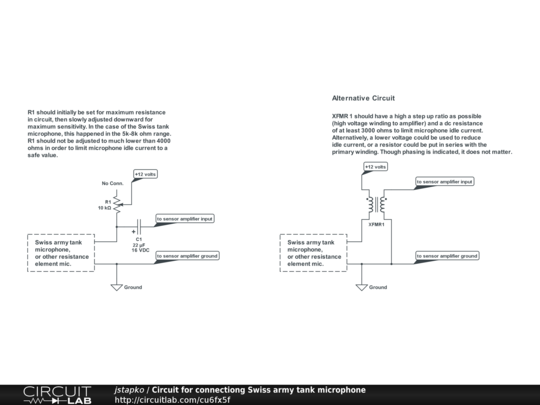

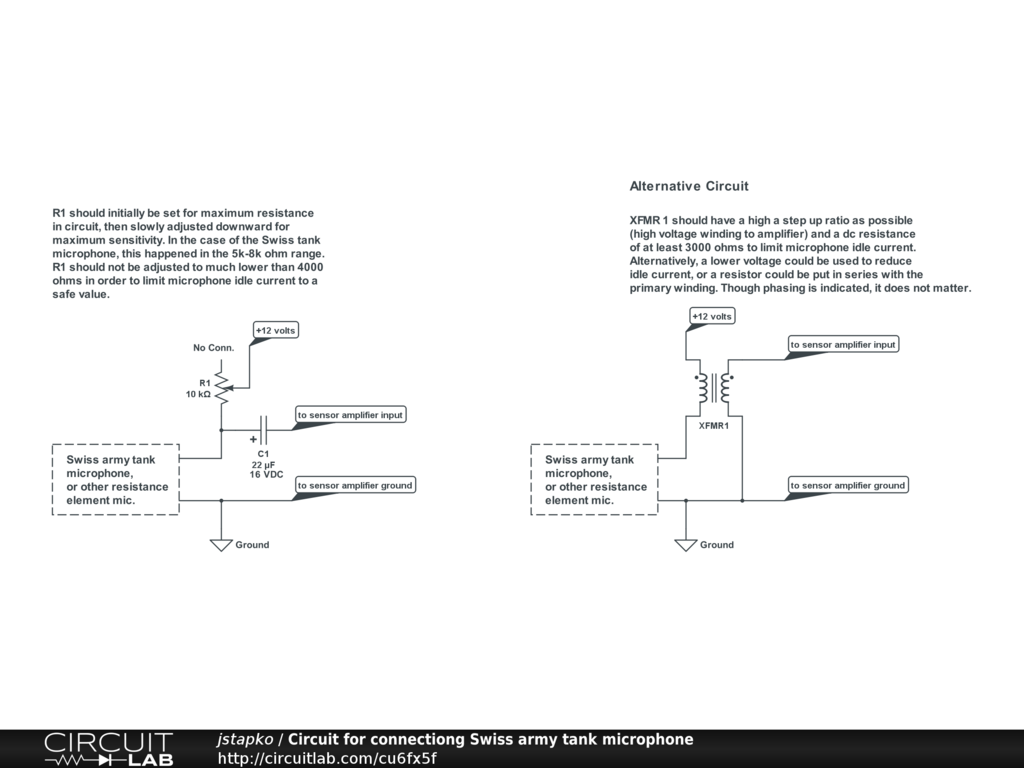

Circuit for connectiong Swiss army tank microphone

some simple circuits for connecting resistance element microphones to get signal out of them (current to voltage converters, basically)
