4-Bit Binary to Decimal Decoder

Created by	djsnowman06
Created	March 24, 2013
Last modified	March 24, 2013
Tags	4-bit binary-to-decimal decoder relay

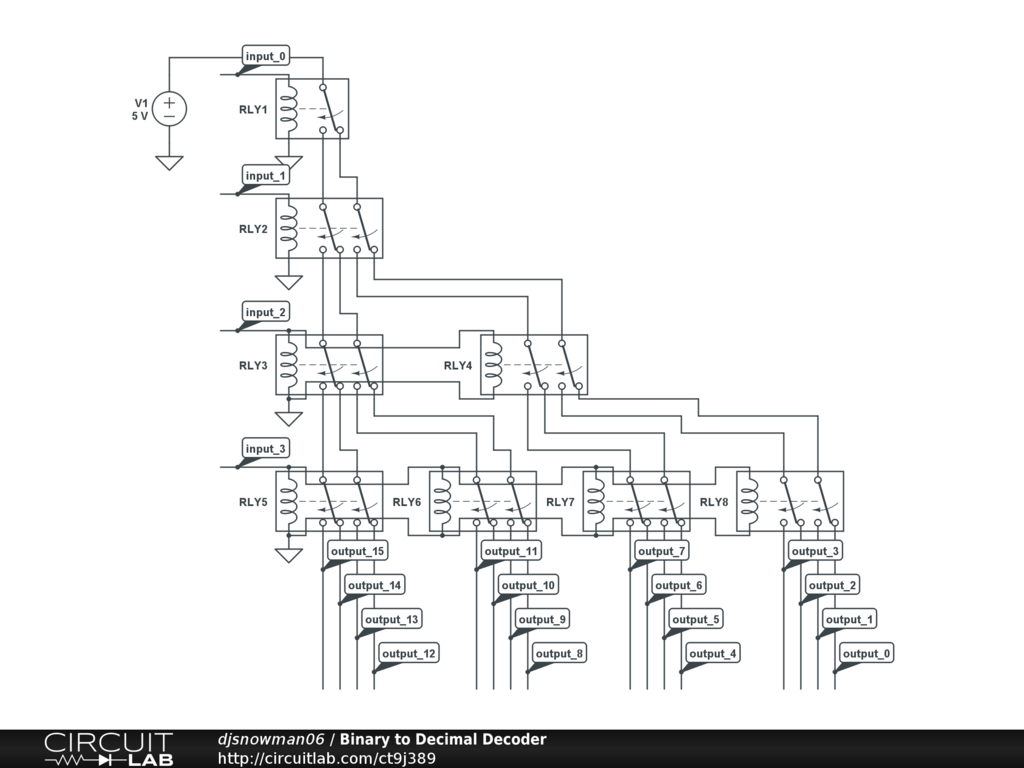

takes 4 data lines and writes them as a single digit from 0 to 15
