2zeroXornot2zeroX

Created by	signality
Created	March 13, 2012
Last modified	March 13, 2012
Tags	inductive-load zero-voltage-switching

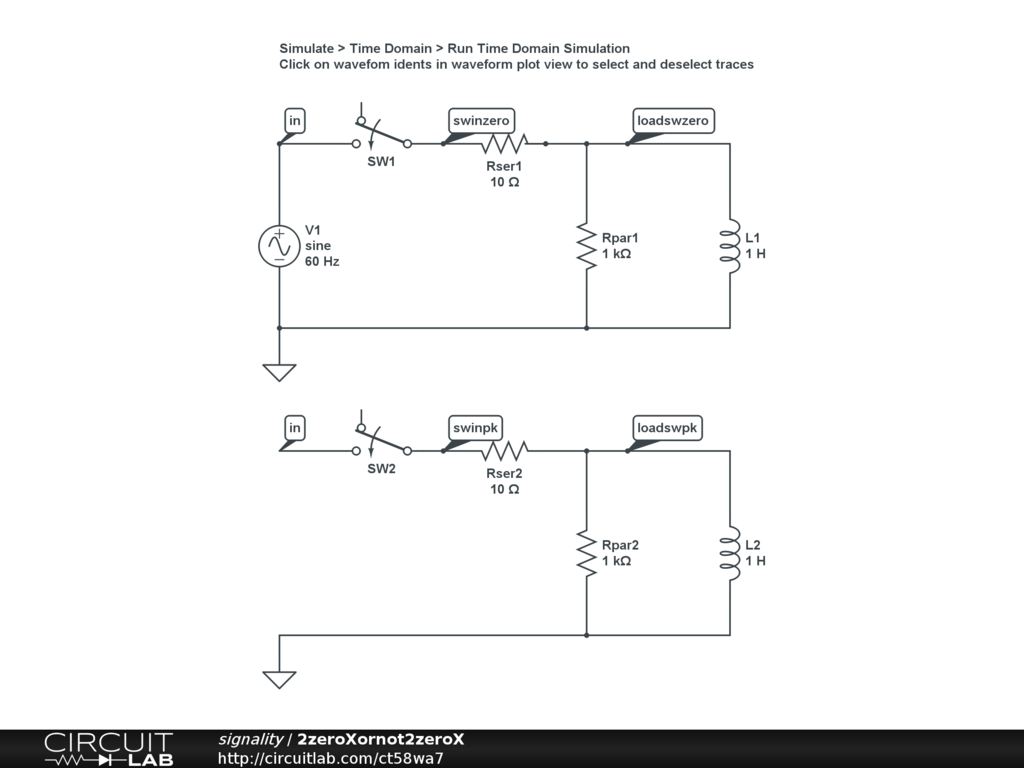

An illustration of the difference between switching an inductive load at zero crossing (zero degrees) and at peak voltage (90 degrees)
