741ish PUBLIC

Created by
Created December 04, 2012
Last modified January 21, 2013
Tags No tags.

Summary

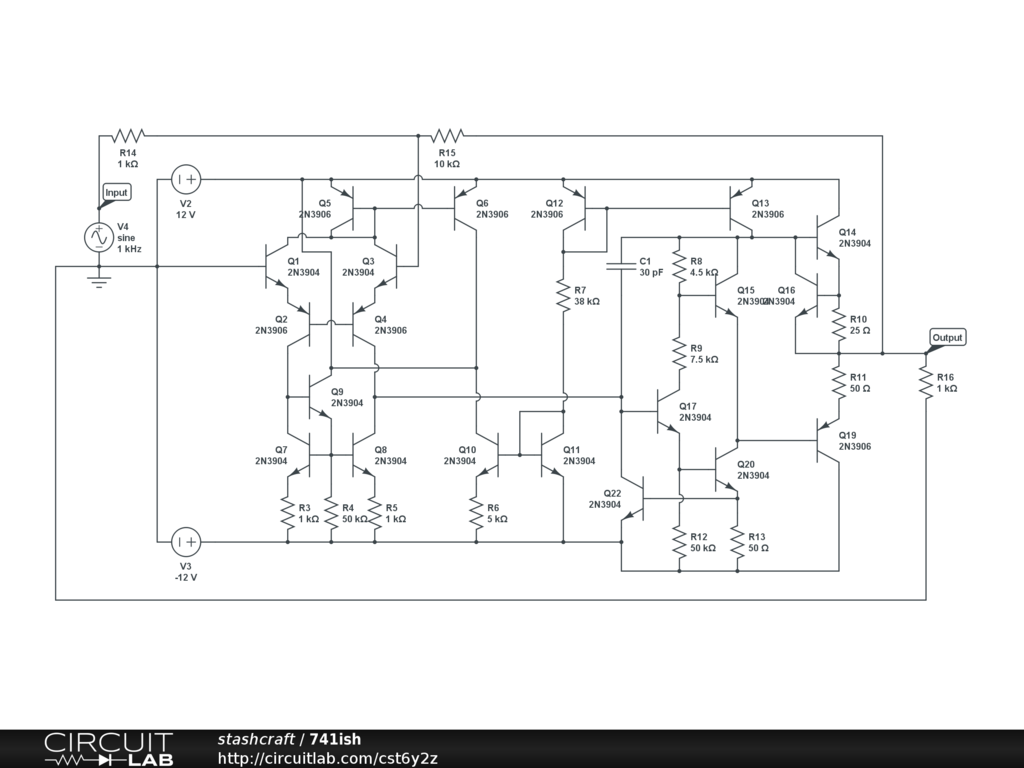

A sort of 741 recreation. Seems to tax Circuit Lab's simulator...probably just too complicated. Also the transistors aren't exactly IC spec...
