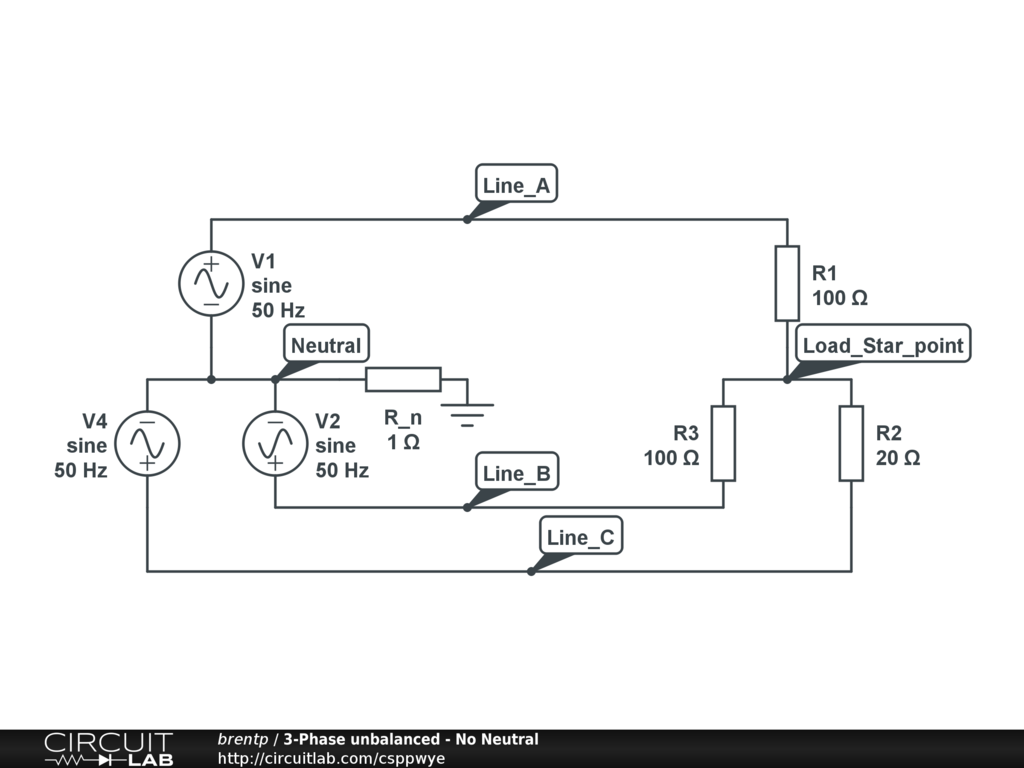

Example of an unbalanced 3-phase load with no connection between the star points of the source and load.
Run the time domain simulation to see the voltage at the load star point.
Note - all voltages in this simulation are relative to the earthed point (source star-point).
