CircuitLab's frequency domain solver can be used to show linearized derivatives of any circuit state variable (current or voltage) with respect to a specified current or voltage input source.

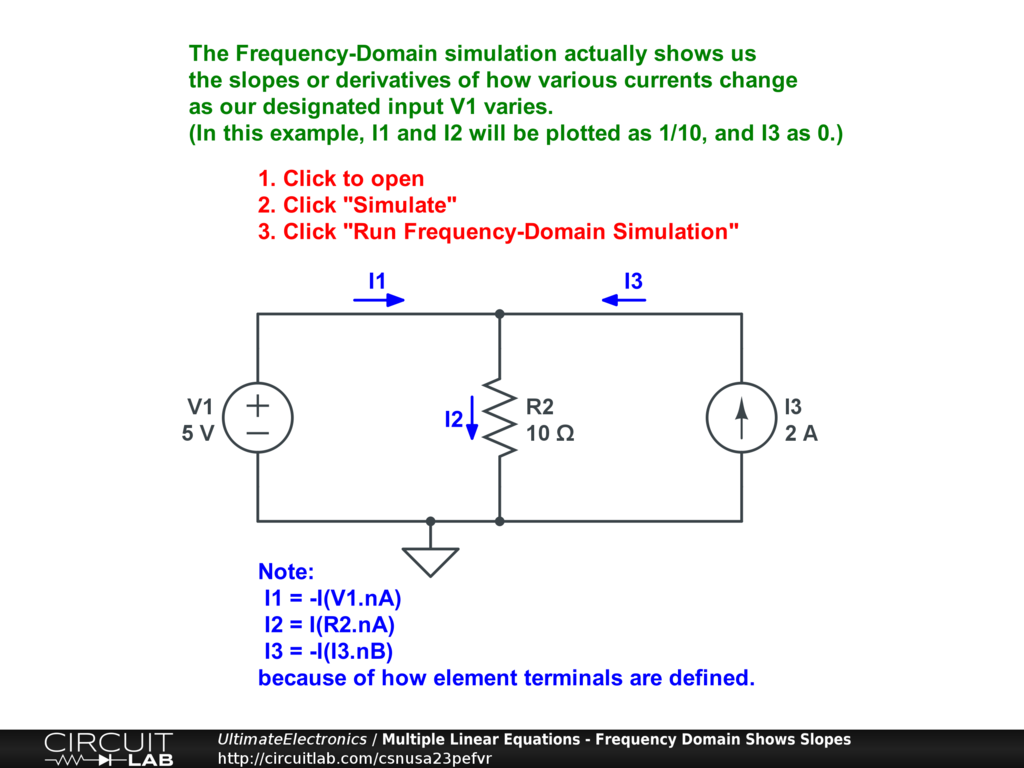

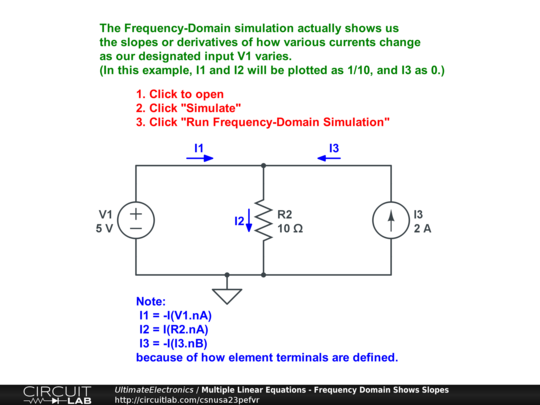

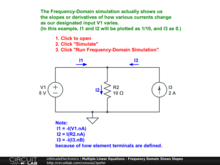

This example is from the Linear & Nonlinear chapter of Ultimate Electronics Book. It illustrates how the frequency domain solver can be used to show linearized derivatives of any circuit state variable (current or voltage) with respect to a specified current or voltage input source.
