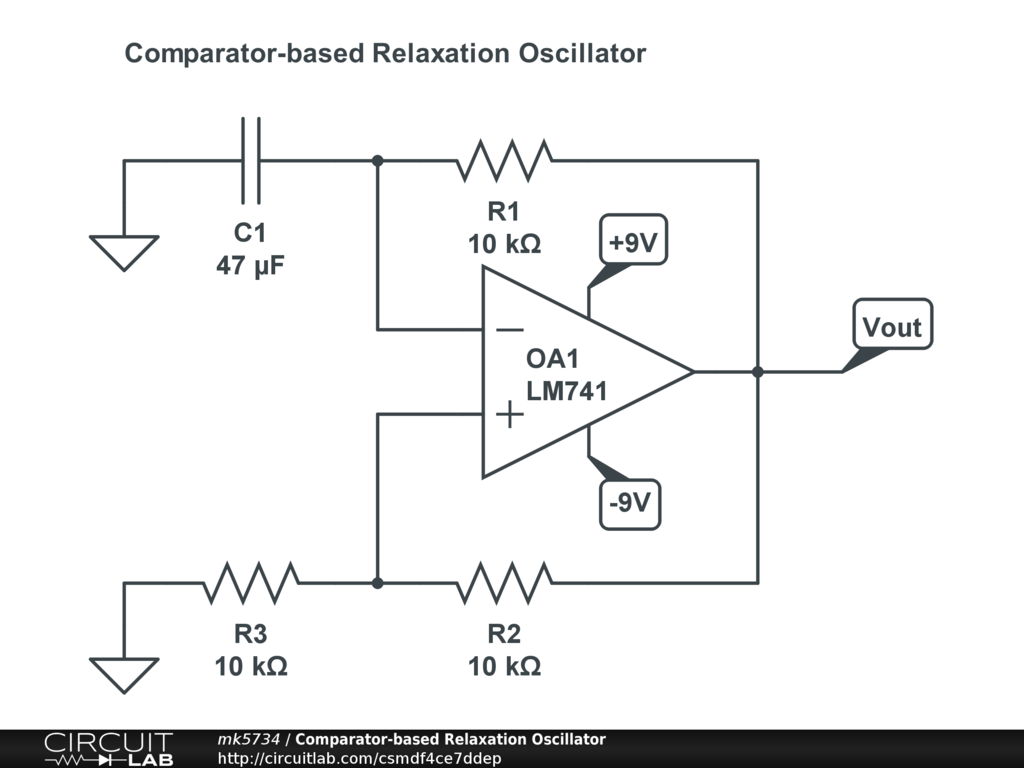

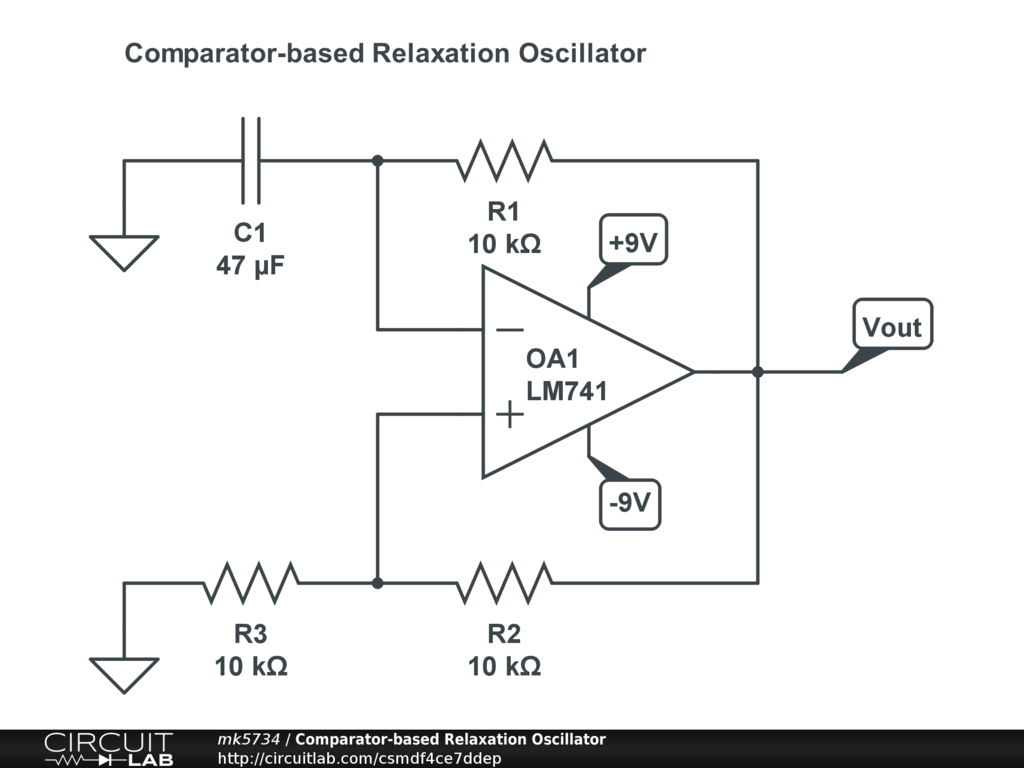

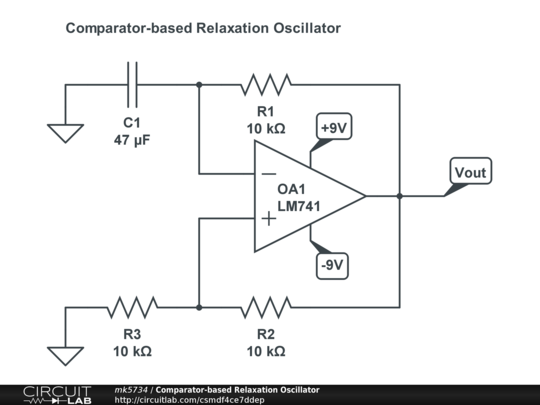

Comparator-based Relaxation Oscillator

Even though this circuit uses an op-amp, it behaves like a comparator. The difference would be that the comparator would swing much faster from rail-to-rail than an op-amp. With the component values here, that difference is negligible.
