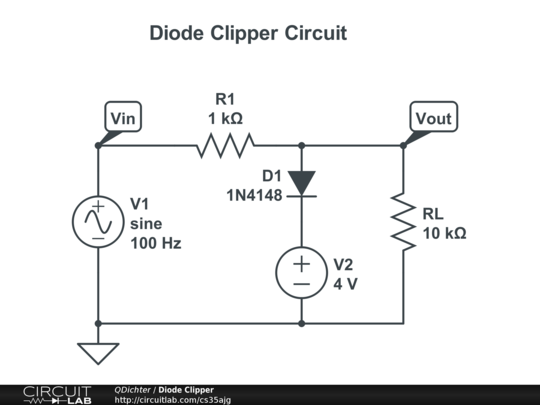

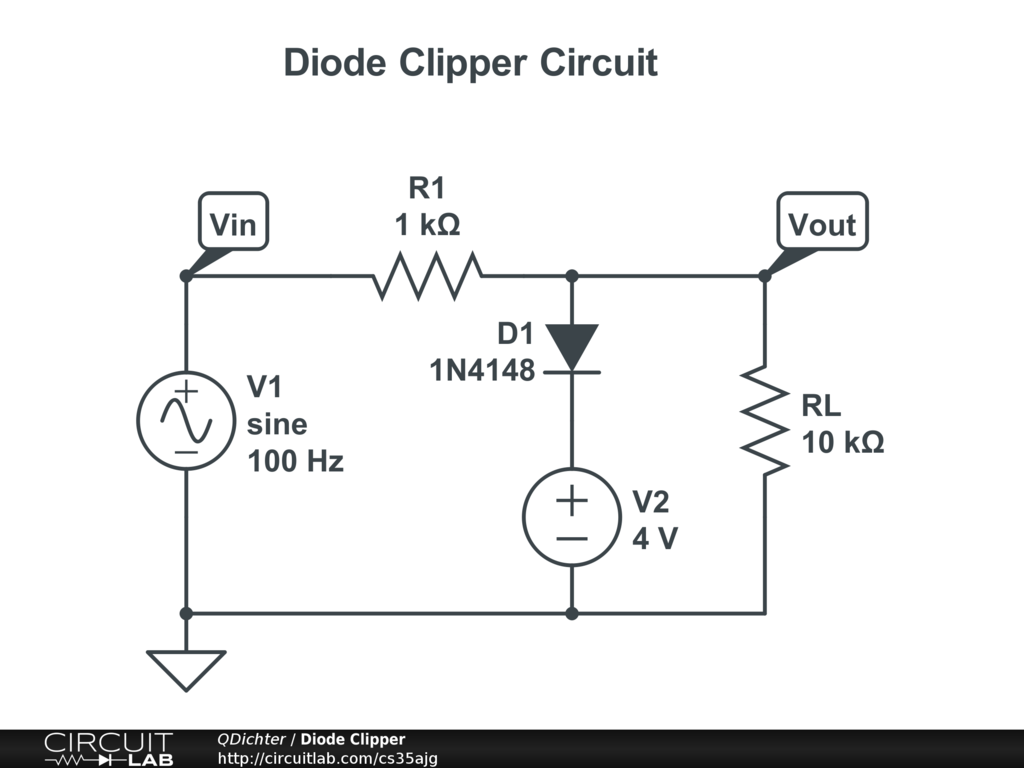

diode clipper the output must be clipped in the +ev half cycle to 4.7 V , i can't see this on the results.
