Diff_Pair

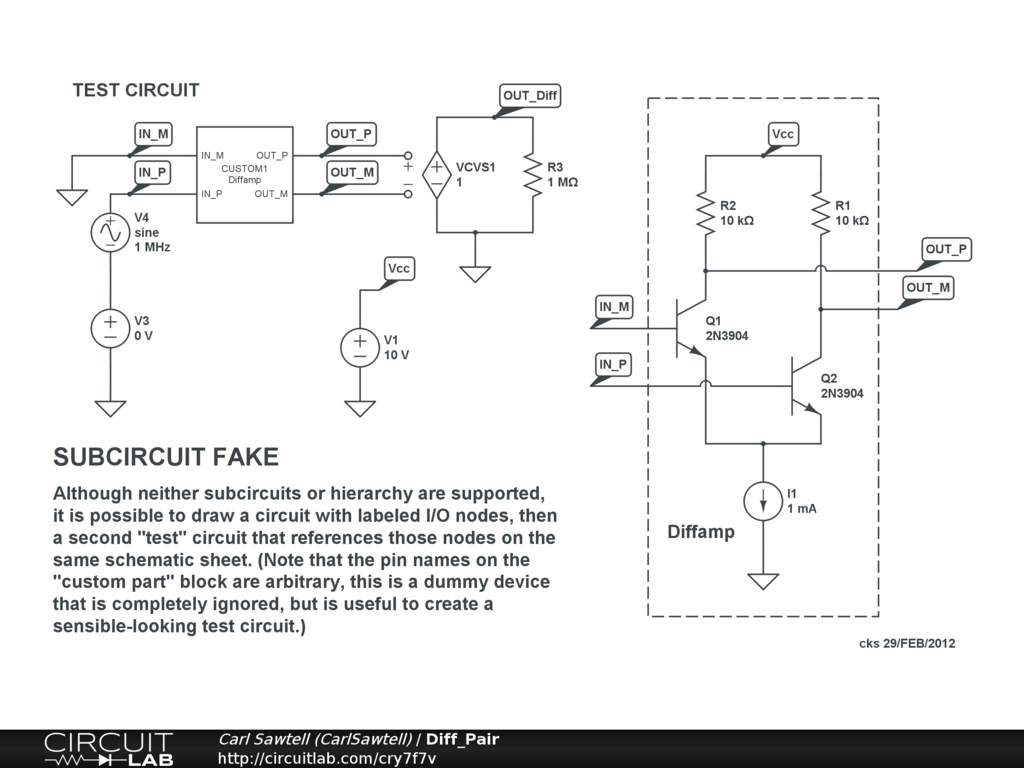

Bipolar diff pair is used as an example to show how to get "custom" blocks to act as a pseudo-subcircuit
