Summary

A Voltage Controlled Current Source (VCCS) has a current equal to some voltage difference elsewhere in the circuit multiplied by a gain.


Description

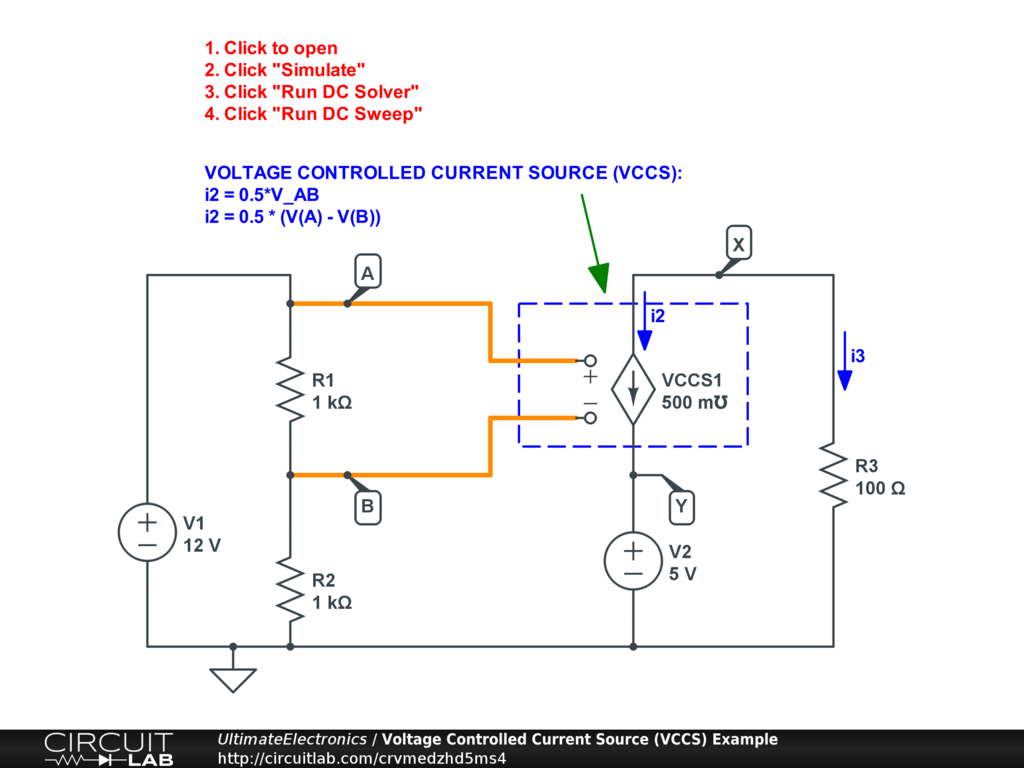

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation where the current through the VCCS1 component depends on a voltage difference elsewhere in the circuit.
