USB power backup controller

Created by	Alex Feb (febb)
Created	April 12, 2014
Last modified	April 22, 2014
Tags	5v-booster pic12 power-supply usb

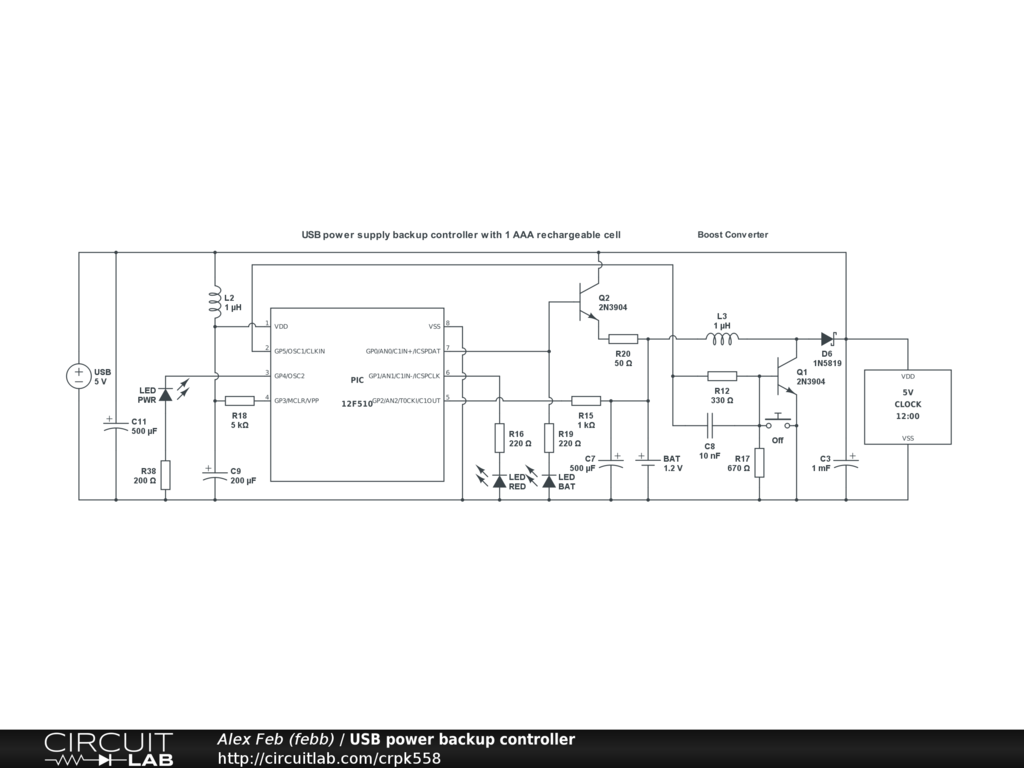

USB supply voltage control and backup using NiMh rechargeable battery.
