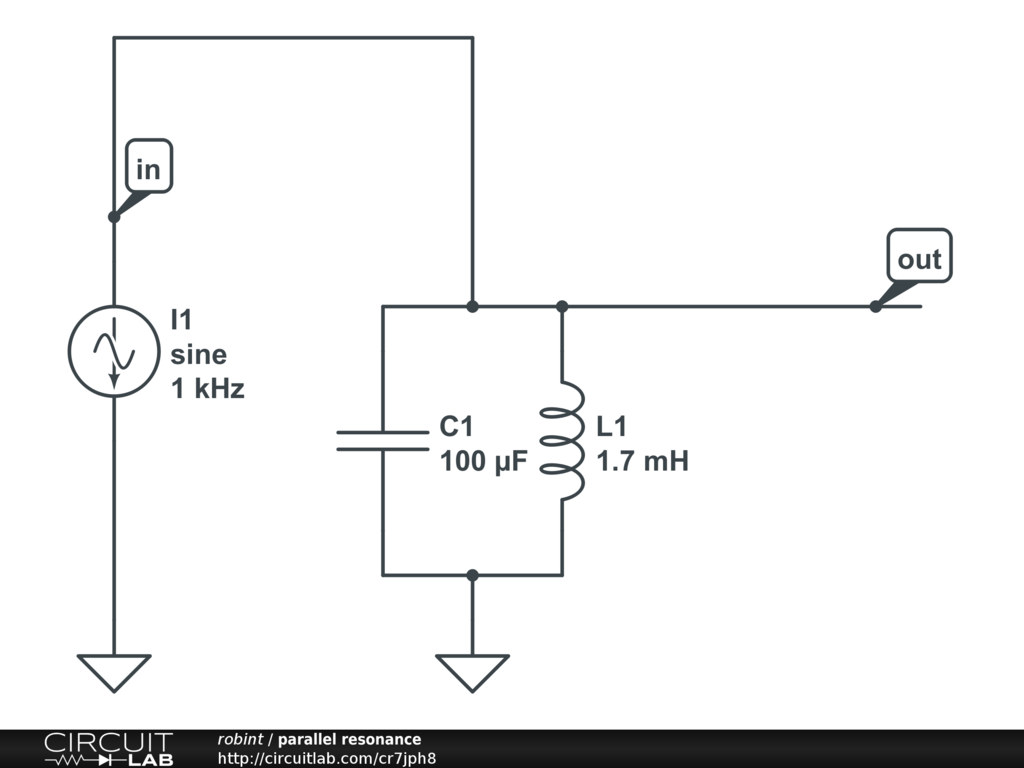

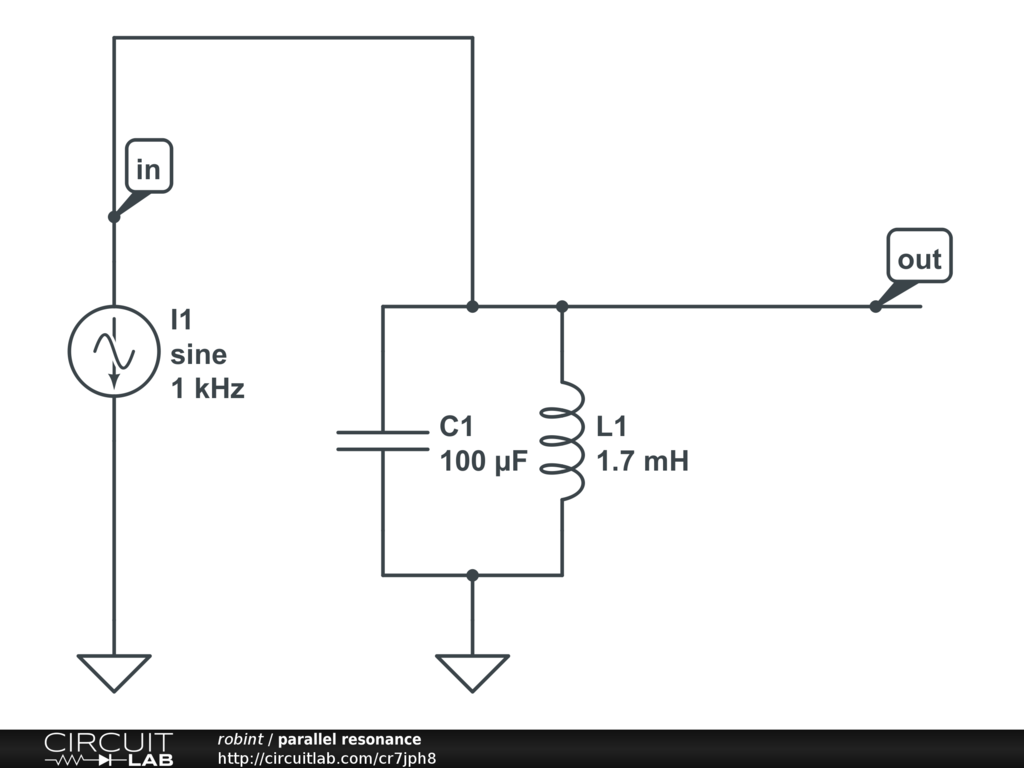

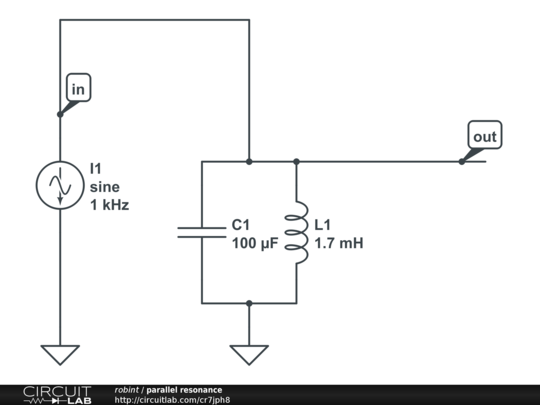

Took me a while to figure that you must drive this cct with a current generator, NOT a Volt source - it wont work

If you put a series resistor of >100ohm between a volt source and the cct, then it works (cos I guess you turned your volt source into a virtual current source)

Is this right in the real world. Have I missed this fundamental all these years?

Try moving the L n C into series mode and drive it with a Volt source and it works

your thoughts pls
