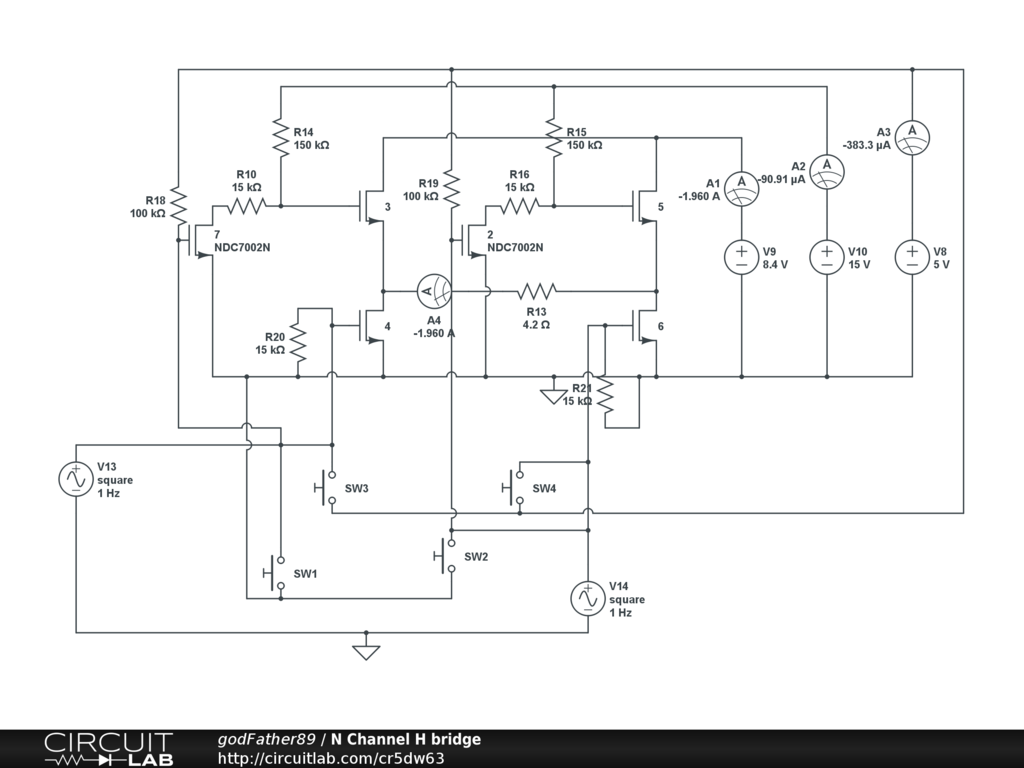

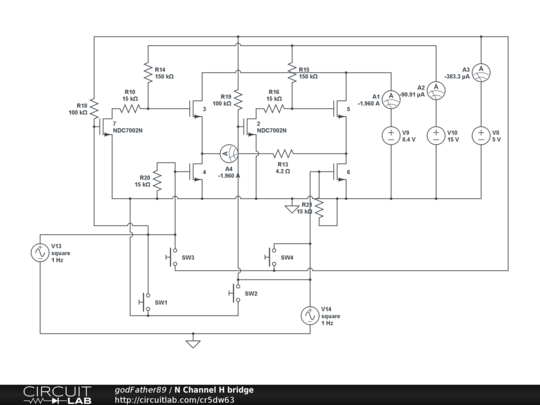

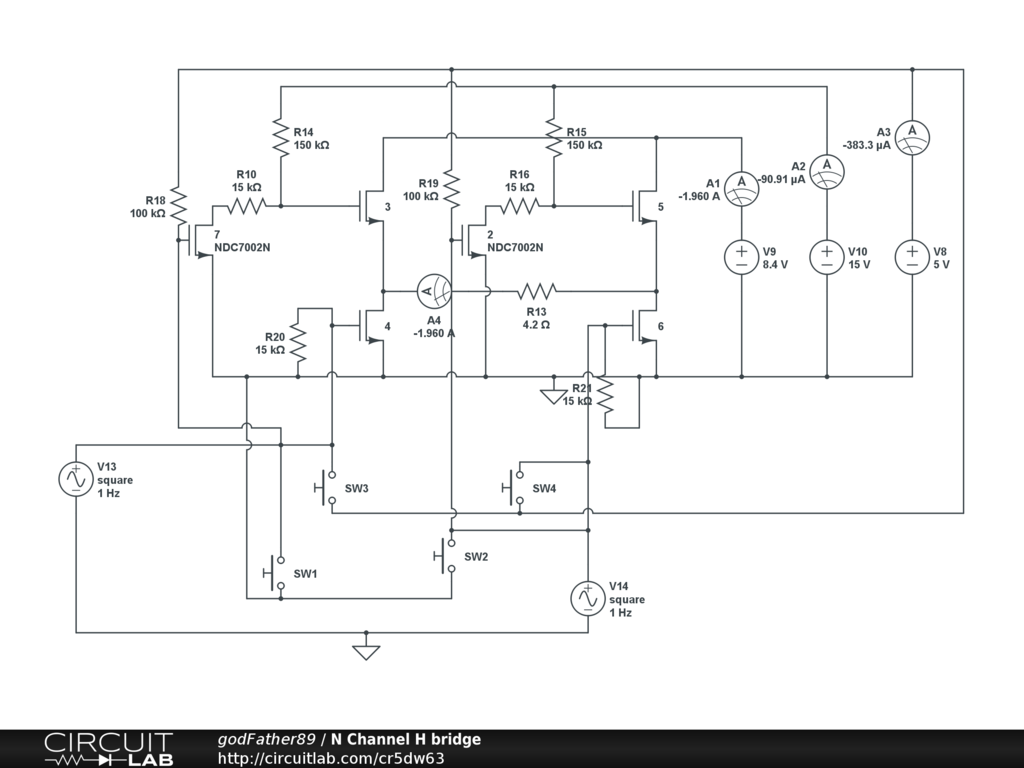

N Channel H bridge

H bridge made only with N channel fets. Add a microntroller and there it is. (Intended to use in a RC model).
