Summary

This 4 amplifier variant on SV filter allows all amps to be inverting. Provides Lowpass, Highpass and both inverted and non-inverted Bandpass outputs.


Description

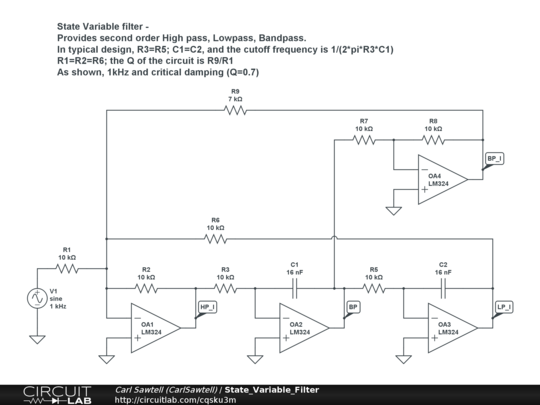

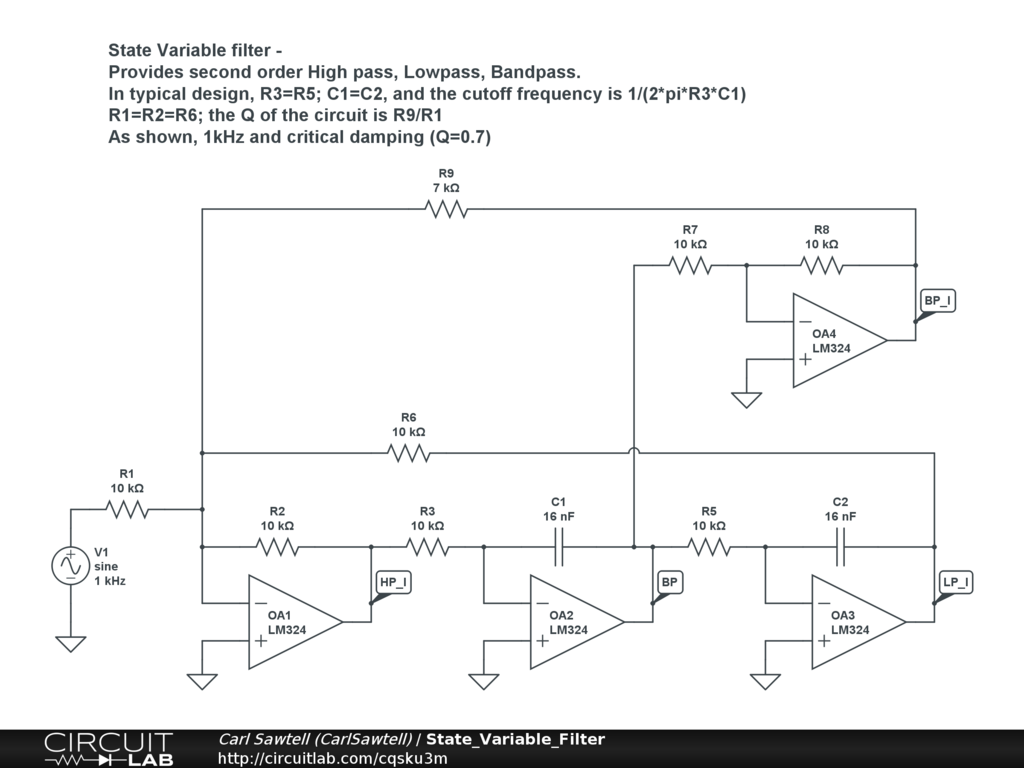

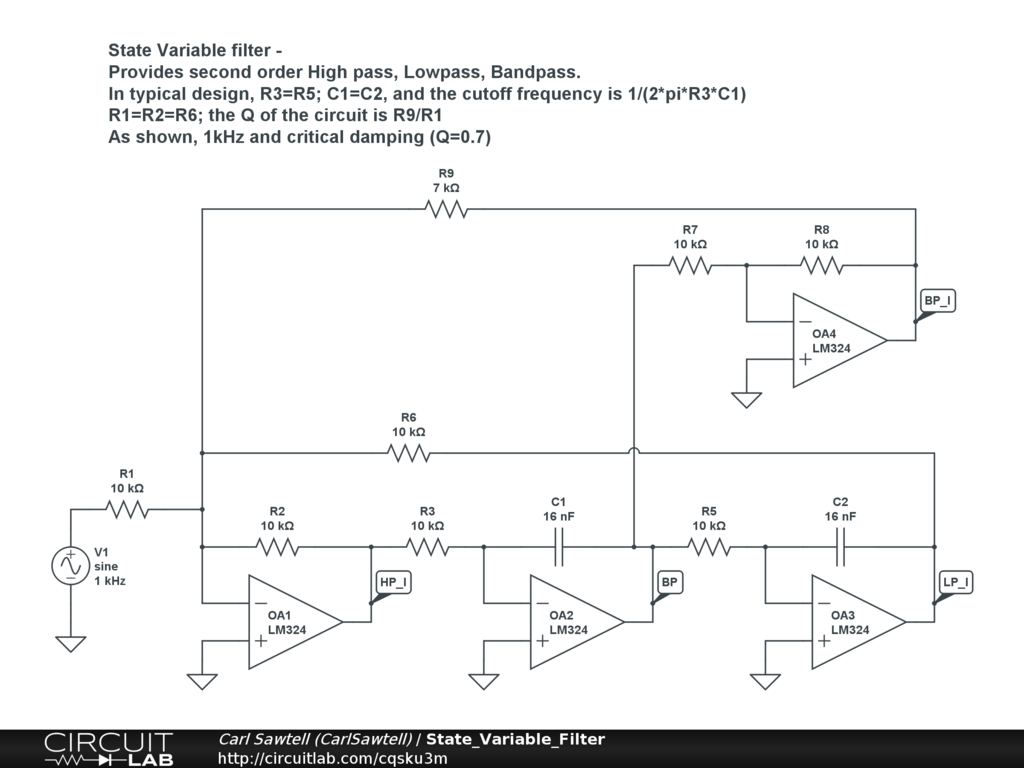

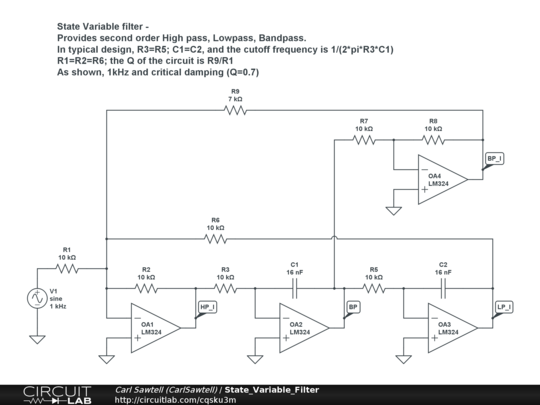

State Variable filter

Provides second order High pass, Lowpass, Bandpass.

In typical design:

  • R3=R5; C1=C2, and the cutoff frequency is 1/(2piR3*C1)

  • R1=R2=R6

  • Q = R9/R1 (Q is the magnitude of response at cutoff; higher Q give more peaking/resonance)

As shown, 1kHz and critical damping (Q=0.7)
