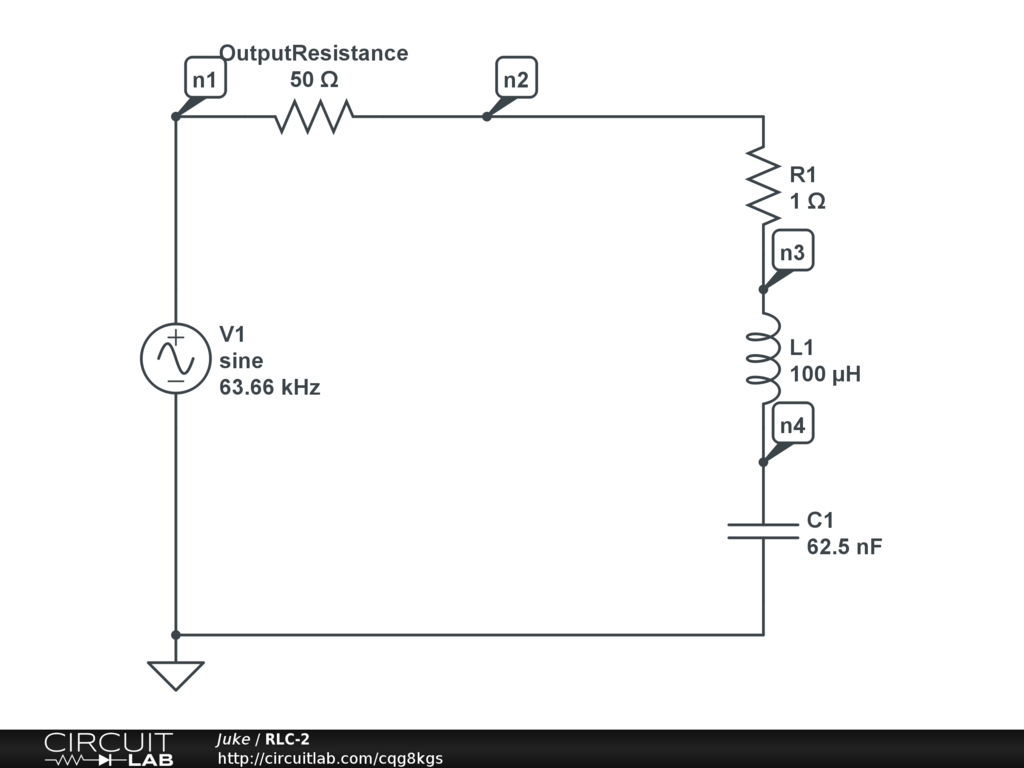

This is the same RLC circuit at its resonant frequence, but taking into account of the output impedance of the function generator.

This time, the voltage across the capacitor reaches a max. of 10.82V. Likewise,the max. voltage across the inductor is 10.82V.

However, the output voltage of the function generator has reduced to a max of 700mV approx.!!!!
