Ideal Voltage and Current Source Symbols

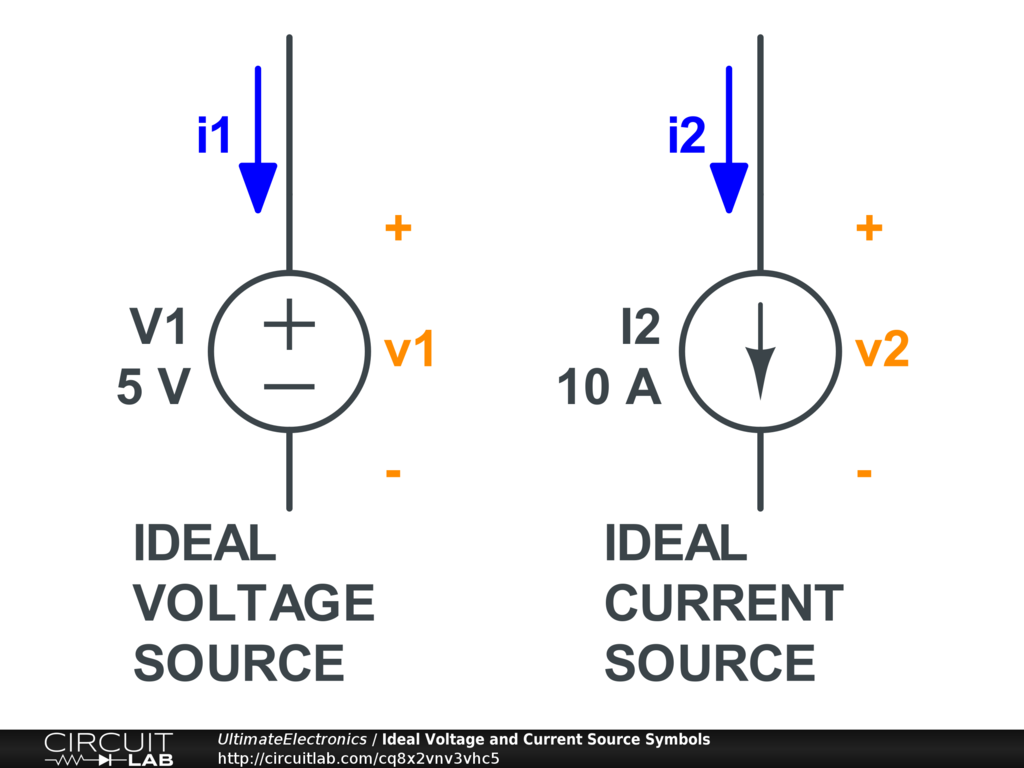

The schematic symbols for the ideal voltage source and ideal current source are shown and labeled.
