A circuit to supply complementary logic level from a single relay to control the Neo Instruments Ventilator.


Ventilator switch

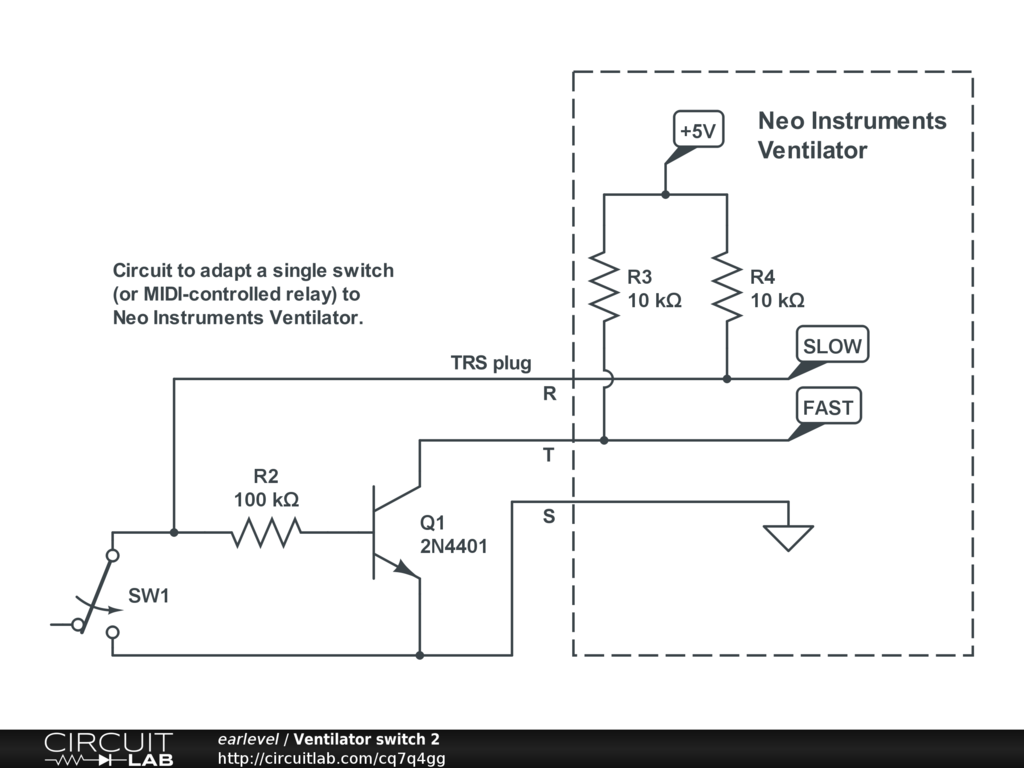

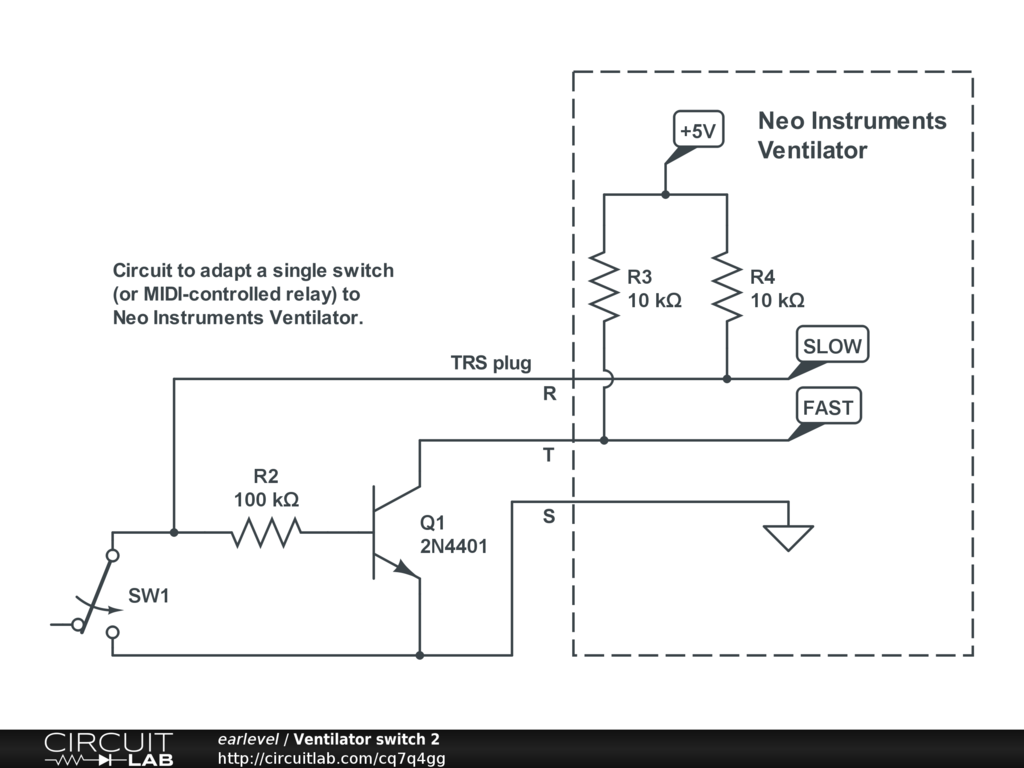

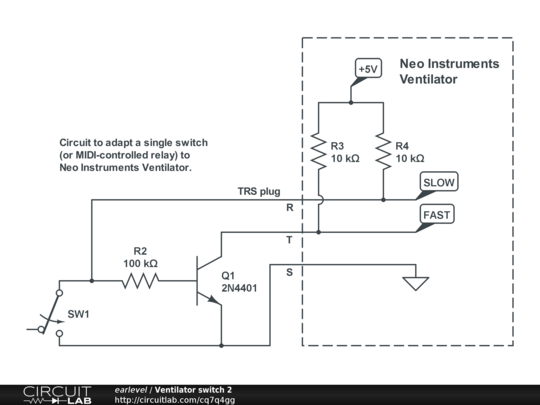

I wanted to control my Neo Instruments Ventilator (Leslie speaker emulator) from a MIDI-controlled relay, but their implementation requires a two-pole switch. This circuit switches the tip and ring of a TRS plug in a complementary manner to satisfy the Ventilator.
