Tags 555   ignition-coil   mosfet   spark-plug

Summary

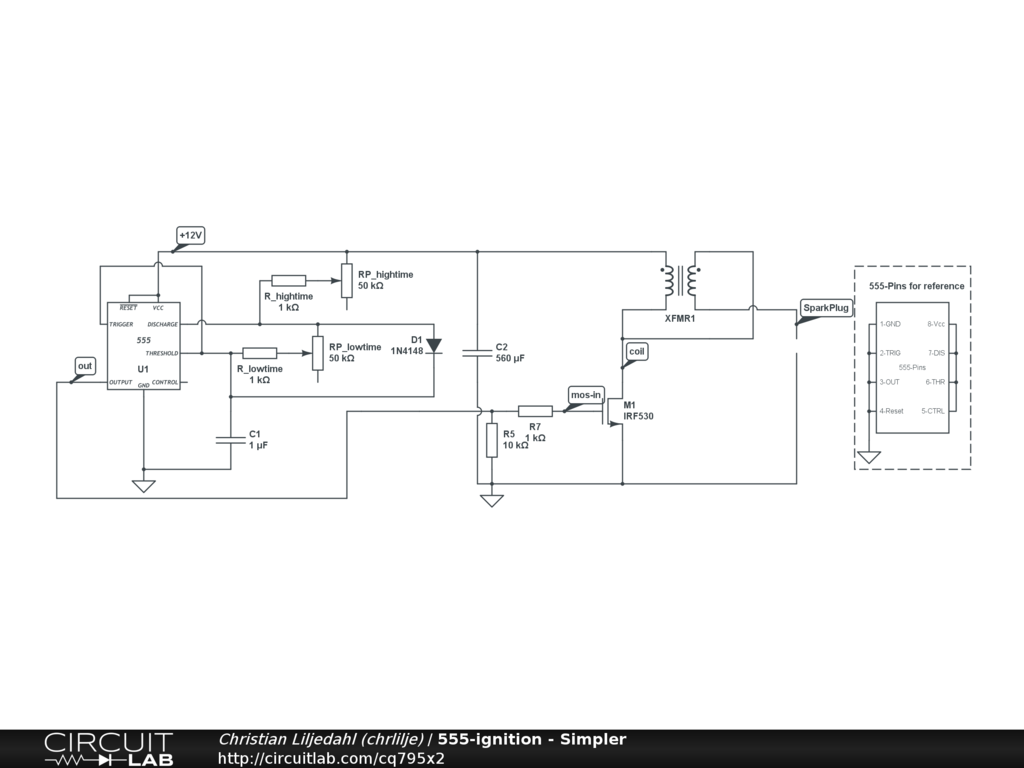

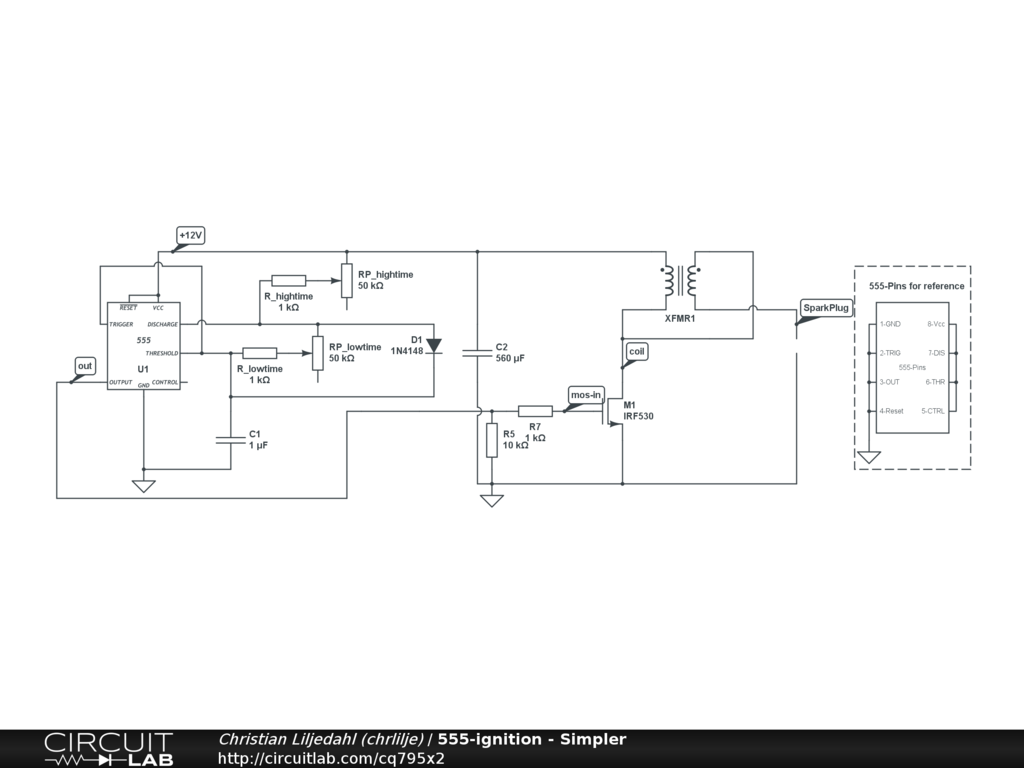

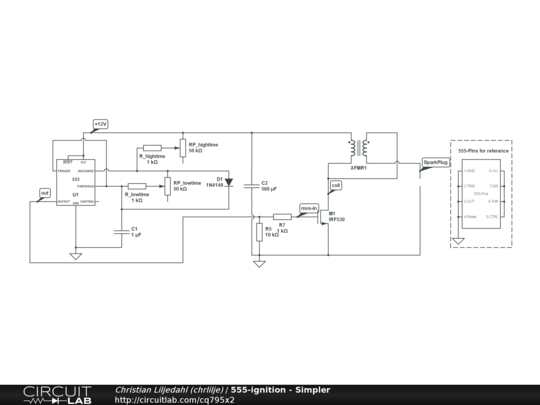

A circuit using a 555 timer that gives pulses to a mosfet, driving an ignition coil making a spark plug spark. To potentiometers make the pulses for the spark plug variable.
