+-18VDC Supply for Spring Reverb PUBLIC

Created by
Created June 23, 2026
Last modified July 01, 2026
Tags 18vdc-supply

Summary

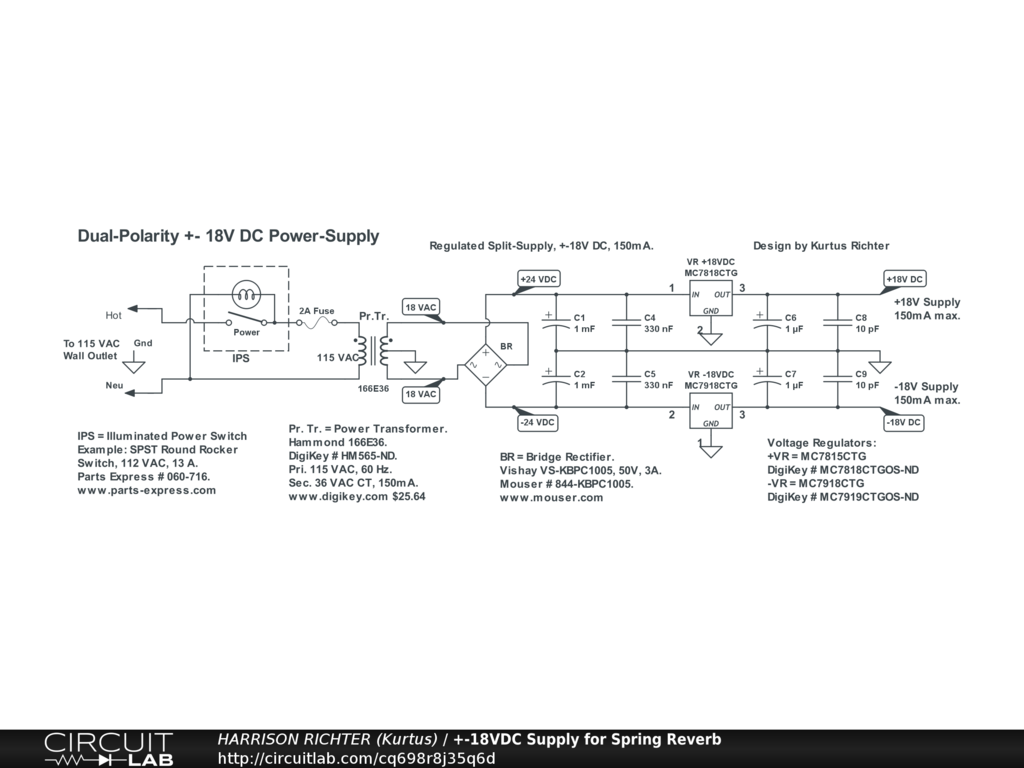

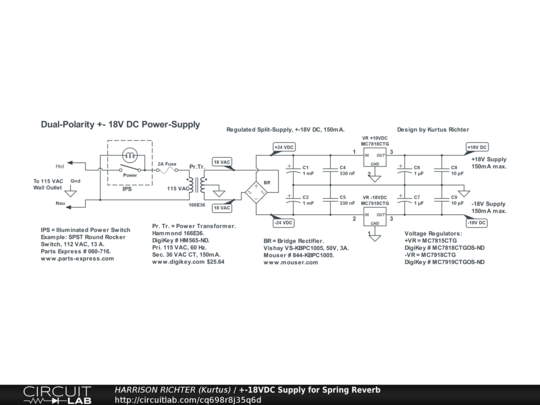

+-18VDC Power-Supply Circuit for 3-Spring Reverb

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Power-supply for the Spring Reverb circuit of the Dream-Rig Project. Provides +-18VDC at up to 150 mA.
