fuente de corriente

Created by	Jorge Malo Rojas (jorelmaro)
Created	September 13, 2013
Last modified	September 15, 2013
Tags	constant-current-source current-mirror

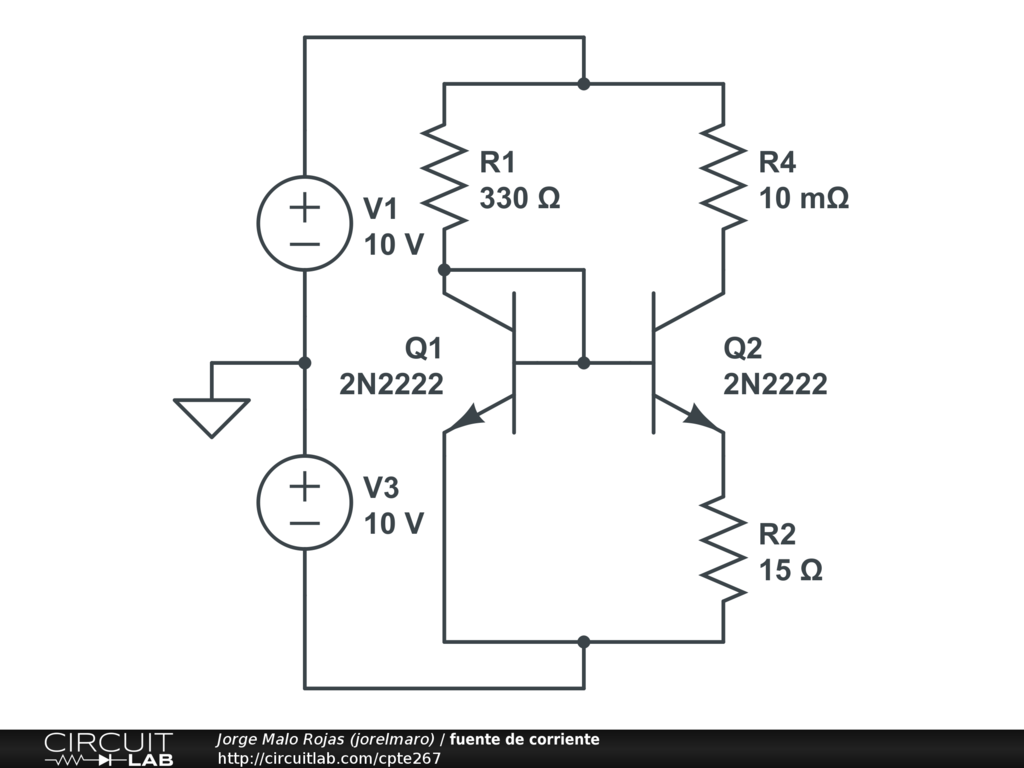

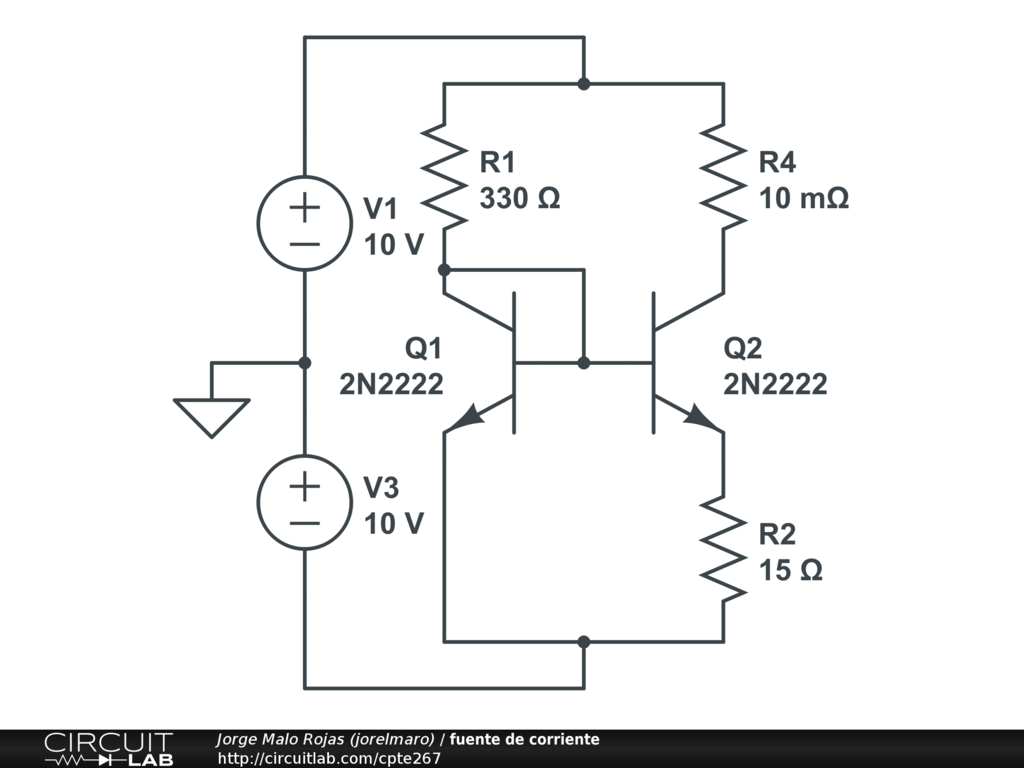

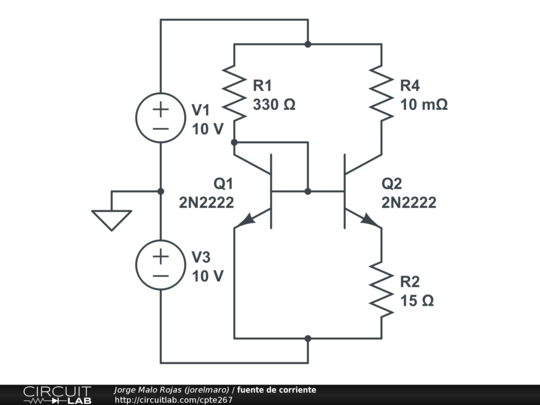

La fuente esta diseñada bajo la configuración propuesta por Widlar, con resistencia en el emisor de Q2, la corriente de salida es de 5.62 mA
