Dream-Rig Circuit 3.1 PUBLIC

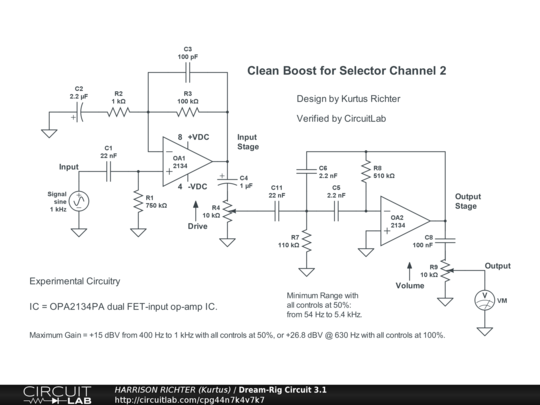

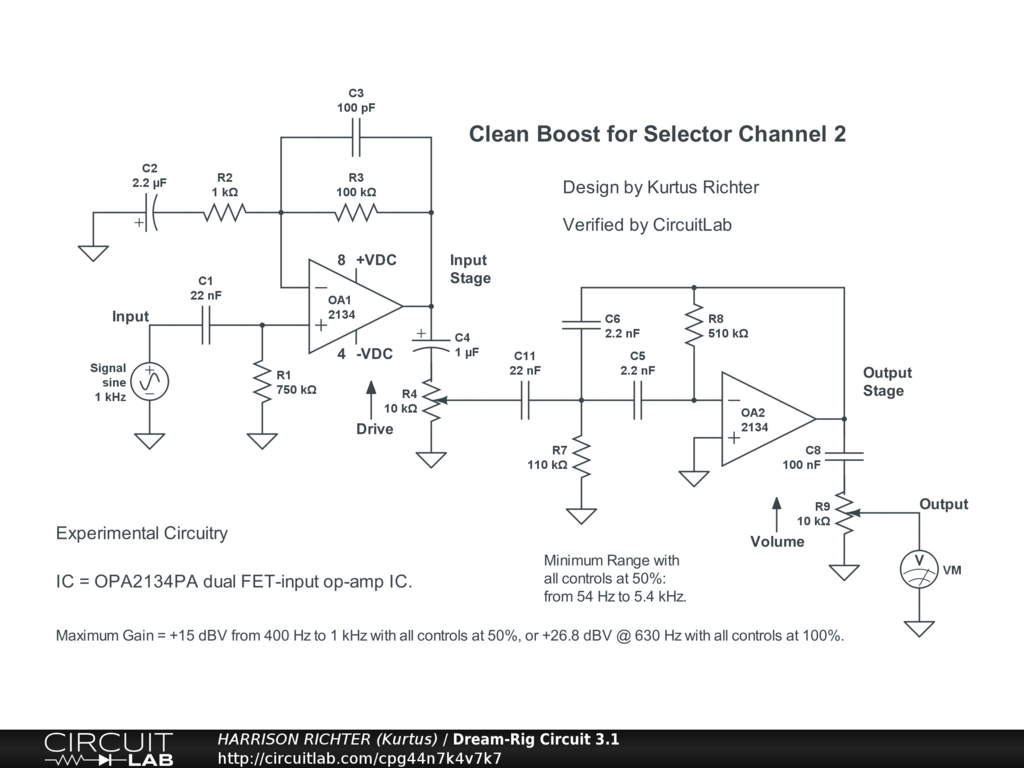

Clean Boost for Dream-Rig Selector Channel 2

Clean boost circuit for using on Channel 2 of the 1-of-4 Exclusive-Selector in the Dream-Rig Project, with Channel 1 reserved for an unaltered signal. This circuit can be replaced by any other kind of circuit, including a different kind of commercially available pedal circuit. Controls for this circuit include only Drive and Volume. No tone-controls. If tone shaping is desired, a tone circuit can be used in series with this circuit. Power-supply not shown. Requires a regulated dual-polarity DC supply providing +-9VDC or +-12VDC or +-15VDC at >= 20 mA of current. Note: Higher supply voltage results in lower op-amp noise. Experimental circuitry. Breadboard test before committing to a soldered build.
