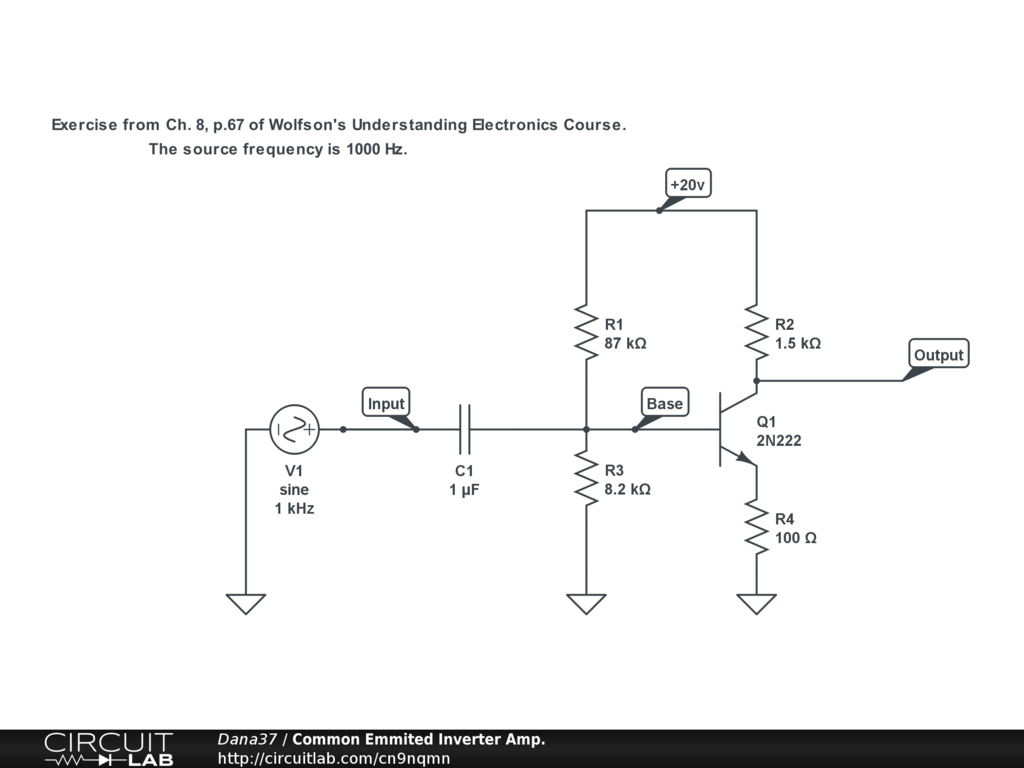

Common-Emitter Inverting Amp.

This is the exercise at the end of Ch.8 of Wolfson's Understanding Electronics course, p. 67 in the workbook.
