Summary

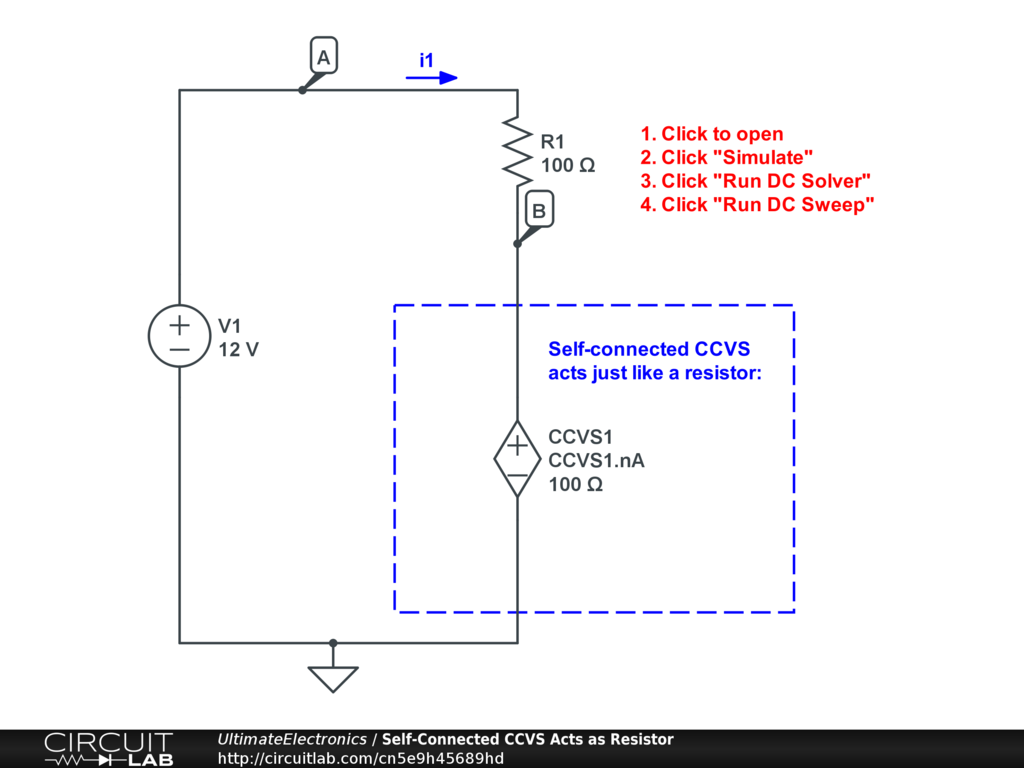

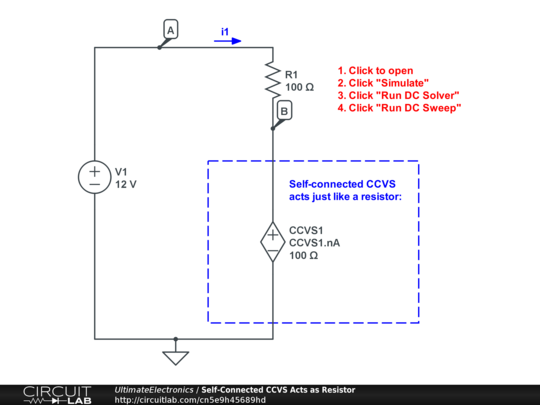

A Current Controlled Voltage Source (CCVS), where the voltage is controlled by the current through the CCVS element itself, acts just like a resistor.


Description

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation showing that a self-connected CCVS acts just like a resistor.
