Power-Supply for 200W PA Amplifier PUBLIC

Created by
Created February 10, 2026
Last modified 3 hours, 43 minutes ago
Tags power-supply

Summary

Power-Supply for 200W PA Amplifier

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

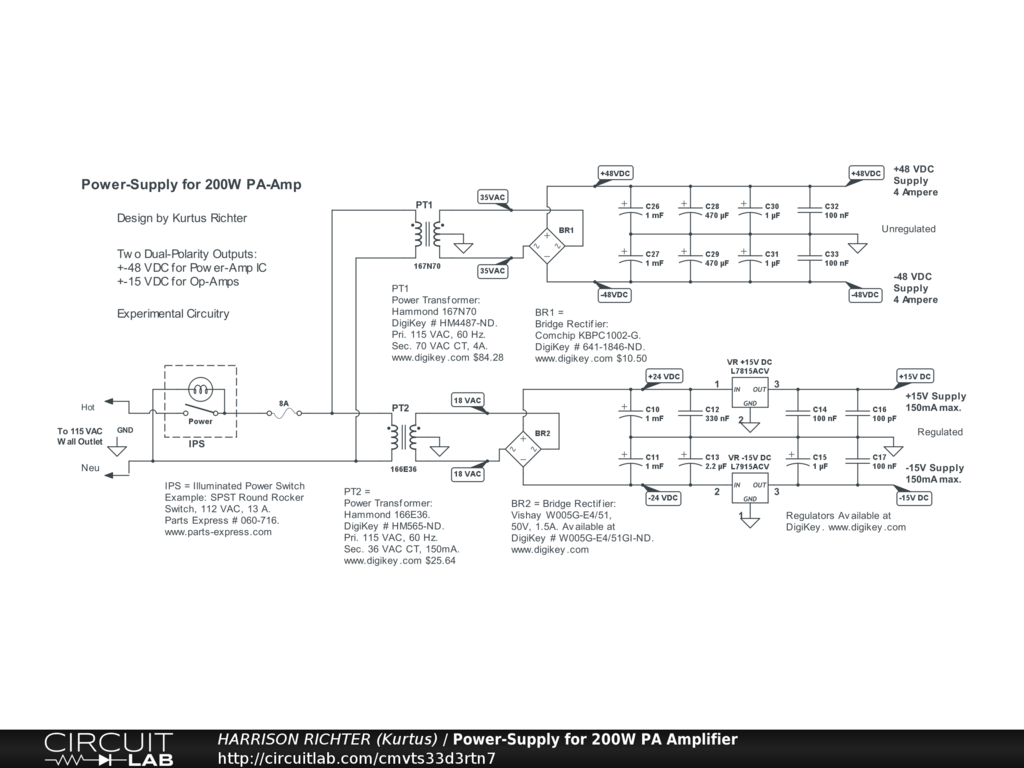

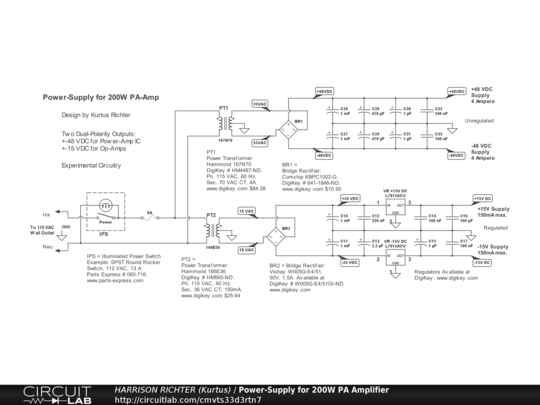

Power-supply for 200W PA Amplifier. Provides two DC voltages; one regulated dual-polarity +-15VDC @ 150 mA for op-amps, and one unregulated dual-polarity +-48VDC @ 4A for the power-amp ICs. Experimental circuitry. Breadboard test before soldering. Shield transformers from rest of circuitry. Heatsink the regulators. House complete project in a grounded metal enclosure.
