Superluminal Distortion Booster PUBLIC

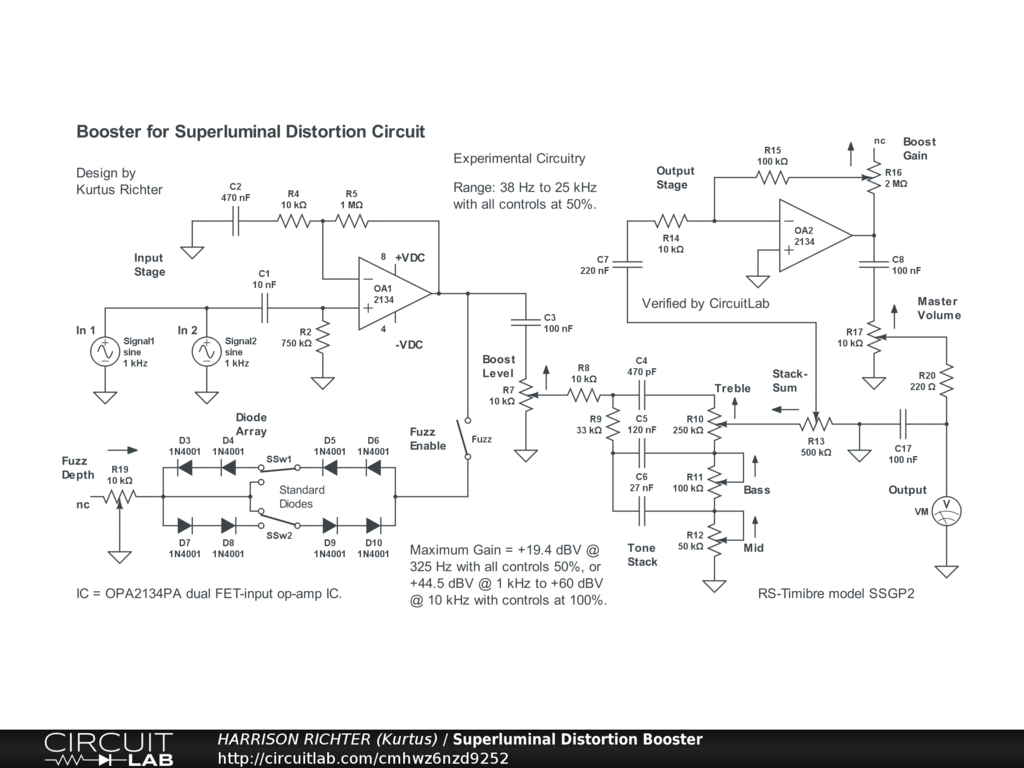

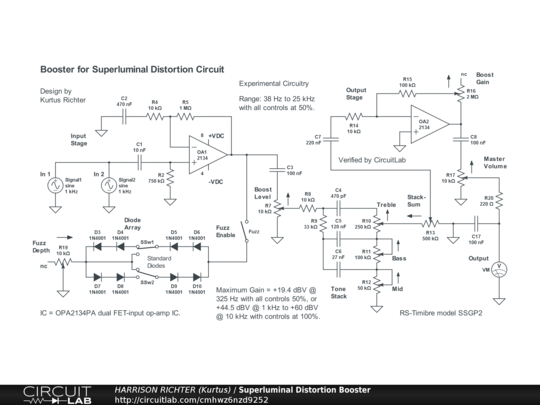

Booster Circuit for the Superluminal Distortion Circuit

Booster circuit for the Superluminal Distortion Circuit. Place it after the Superluminal Distortion Circuit. This circuit has two gain stages, one shunt-type Schottky-diode array, and a Fender-style tone-stack. Controls Include: Fuzz enable switch, Fuzz symmetry switches, Fuzz Depth, Boost Level, Bass, Mid, Treble, Stack Sum, Boost Gain, and Master Volume. Use Input 1 here for the signal from the Superluminal Distortion Circuit, and Input 2 for the signal from Out 2 of the Superluminal Distortion Driver. Frequency Range here is 12 Hz to 12 kHz with all controls at 50%, or 10 Hz to 60 kHz with all controls at 100%. Maximum Gain = +25.5 dBV @ 100 Hz with all controls at 50%, or +47.8 dBV @ 100 Hz with all controls at 100%. Power-supply not shown. Requires a regulated dual-polarity DC supply providing +-9VDC or +-12VDC or +-15VDC at >= 20 mA of current. And though simulator verified, treat the circuit as experimental. Breadboard test before committing to a soldered build.
