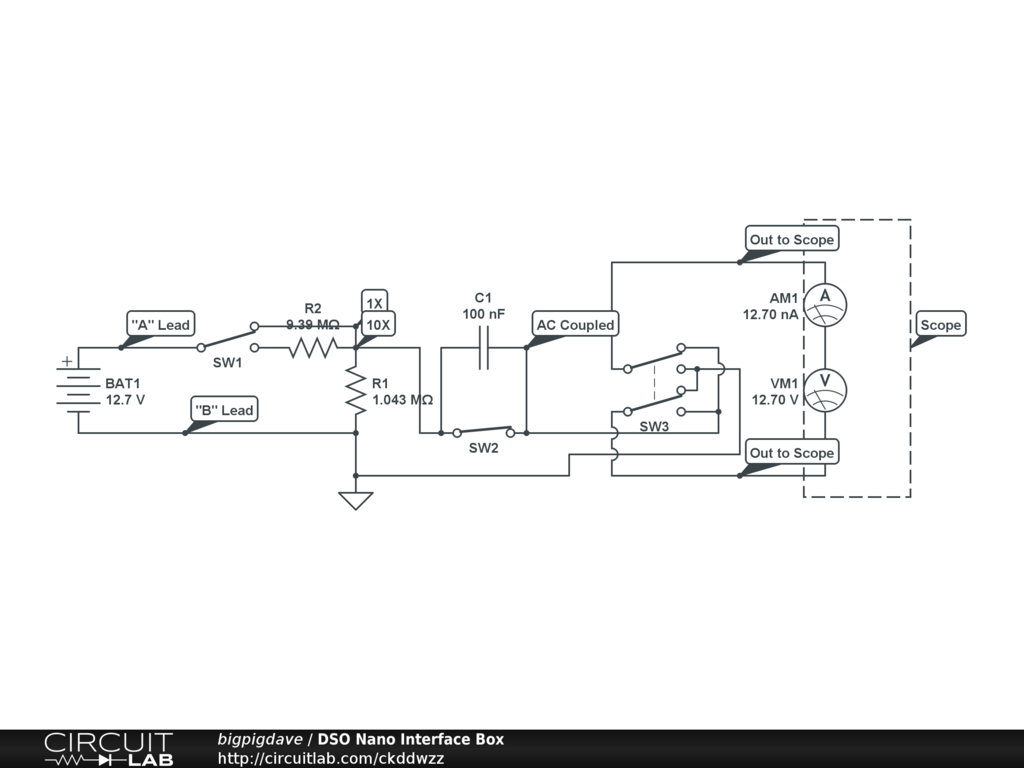

This is a small interface box I put together for my DSO Nano. It provides 4mm banana plug conversion along with 1x & 10x attenuation, AC coupling and lead reversal. I will try to add a picture of the finished project. Please feel free to comment on the circuit and any improvements that could be achieved. Thanks
