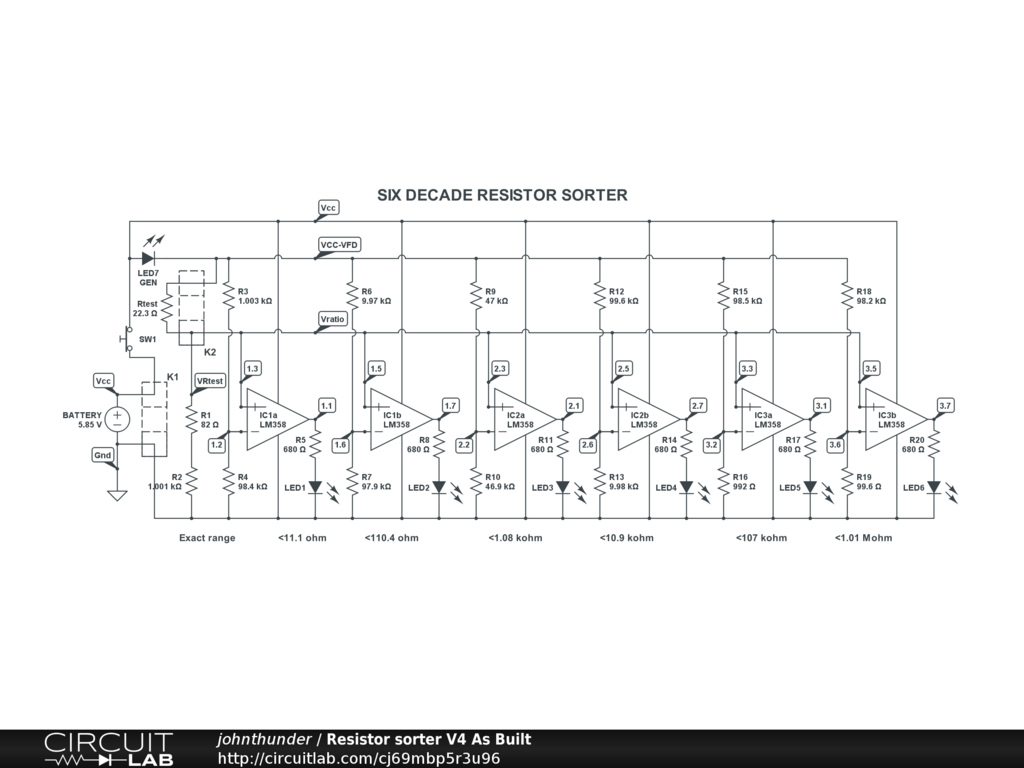

six decade sorter. Inspired from Silicon Chip September 2019 circuit notebook features push button to limit battery drain when not in use ensure to connect op amps LM358 to Vcc to ensure supply is at least 1.5V higher than inputs, else output behaviour is uncertain. use 1 percent resistors. deflecting more than 1 percent from selected values will affect measured ranges so that commonly used values overlap two ranges, making the detector less useful. allows to quickly sort out resistors into six categories after sorting resistors with this circuit, colour coding on the resistors can be more easily followed. please let me know of any improvements you think of.
