Power-Supply for Dream-Rig Circuit 6

Created by	HARRISON RICHTER (Kurtus)
Created	April 08, 2026
Last modified	April 08, 2026
Tags	power-supply

Summary

Power-Supply for Dream-Rig Circuit 6; Solid-State Guitar-Amp.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

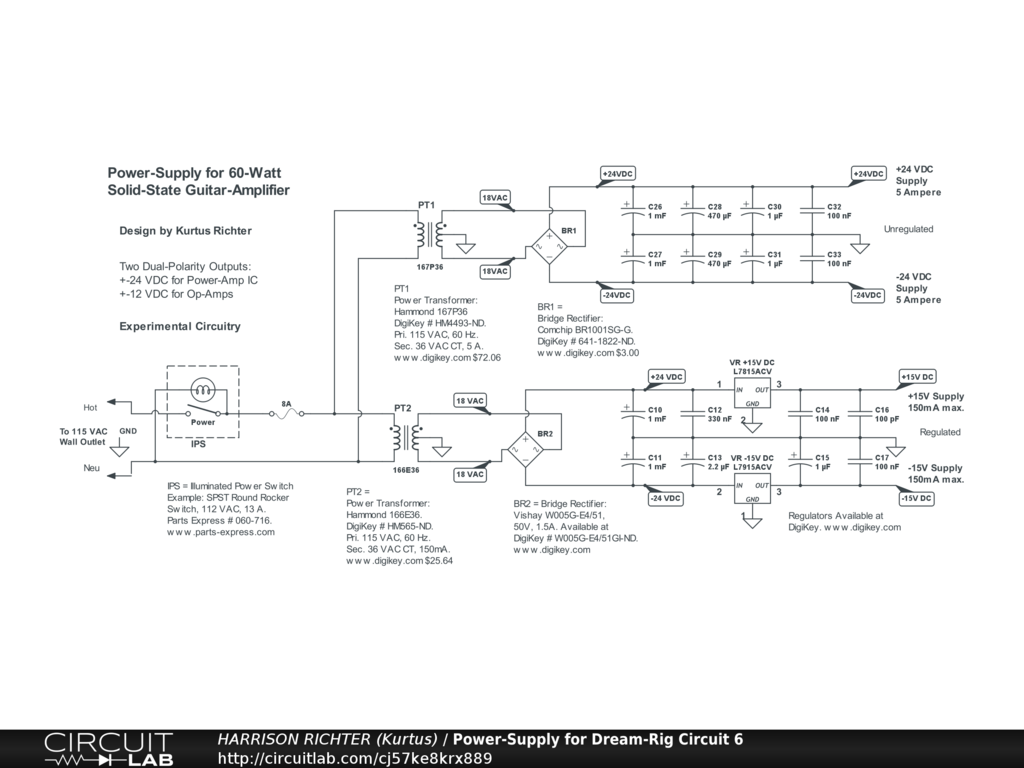

Power-supply for Dream-Rig Circuit 6, the 60-watt RMS solid-state guitar amplifier. Provides dual-polarity +-24VDC @ 5A for power-amp IC and dual-polarity +-12VDC @ 150mA for the op-amps. Note that the +-12VDC supply will supply at least 6 more op-amps in addition to the 2 shown in the power-amp circuit.
