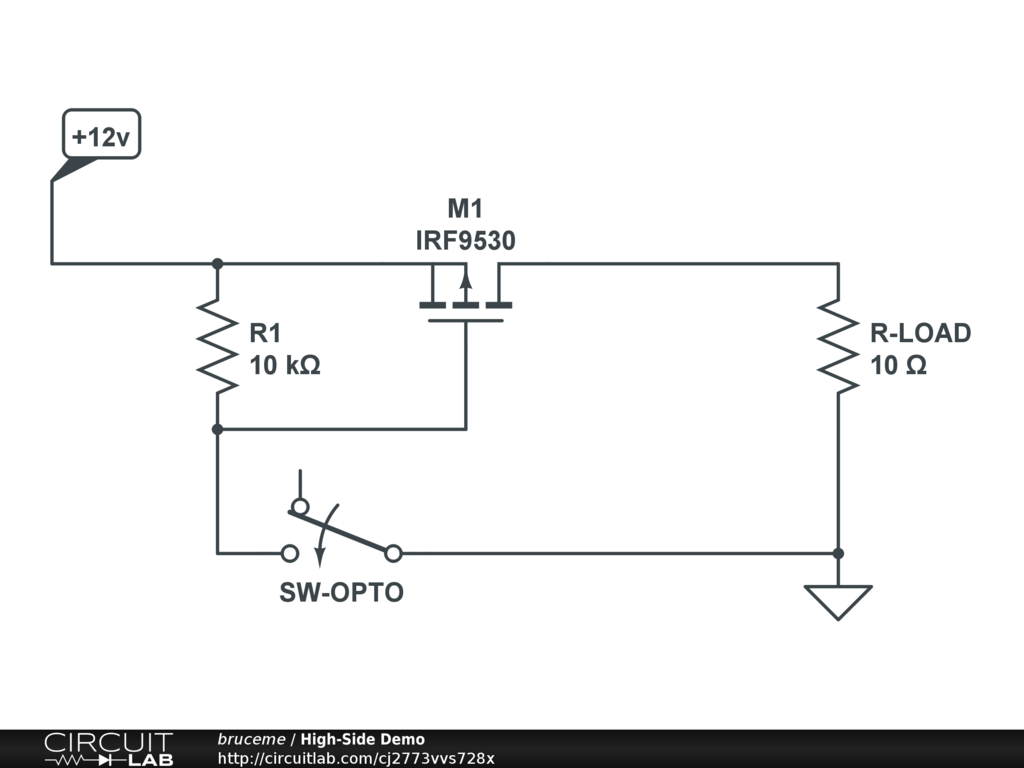

High-Side Demo

Demonstration of a high-side switch, use optocoupler or an npn/n-chanel to pull to ground.
