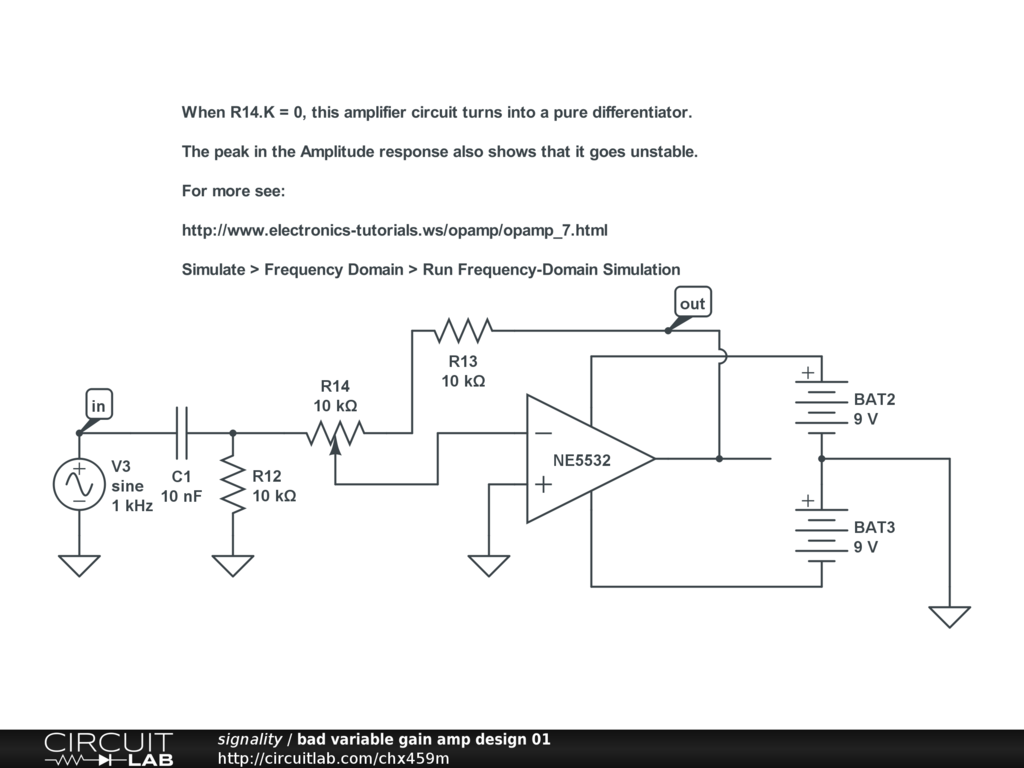

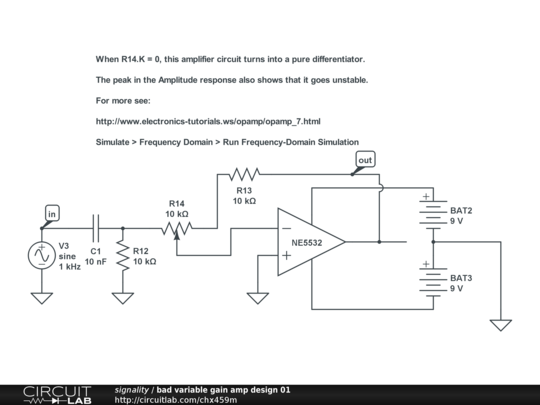

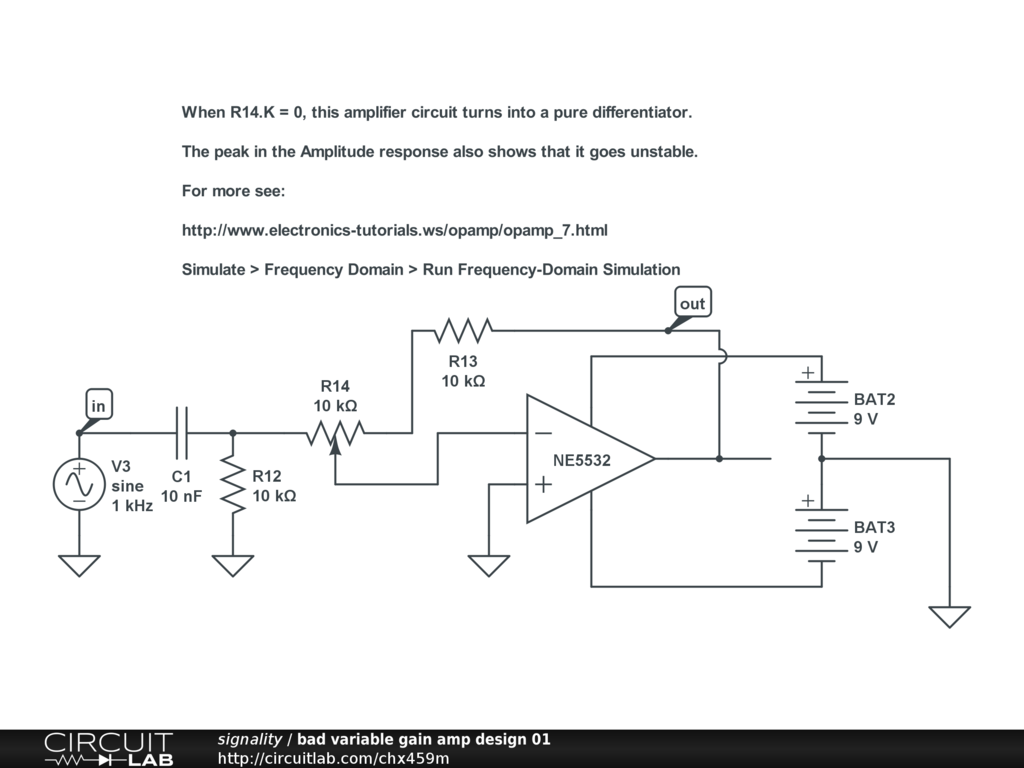

When R14.K = 0, this amplifier circuit turns into a pure differentiator.
The peak in the Amplitude response also shows that it goes unstable.
For more see:
http://www.electronics-tutorials.ws/opamp/opamp_7.html
