Guitar Single Coil

Single coil pickup, one volume, one tone, treble bleed circuit.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

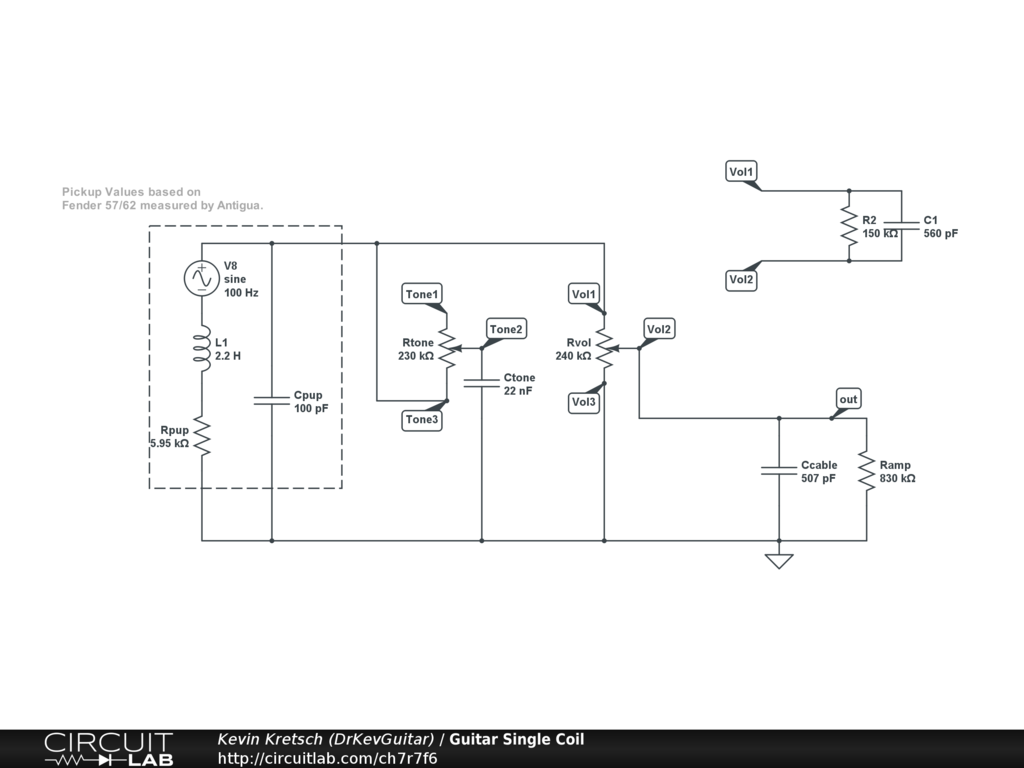

1 Single Coil, 1 volume, 1 tone, treble bypass, short cable, standard modern amp/pedal input impedance.
