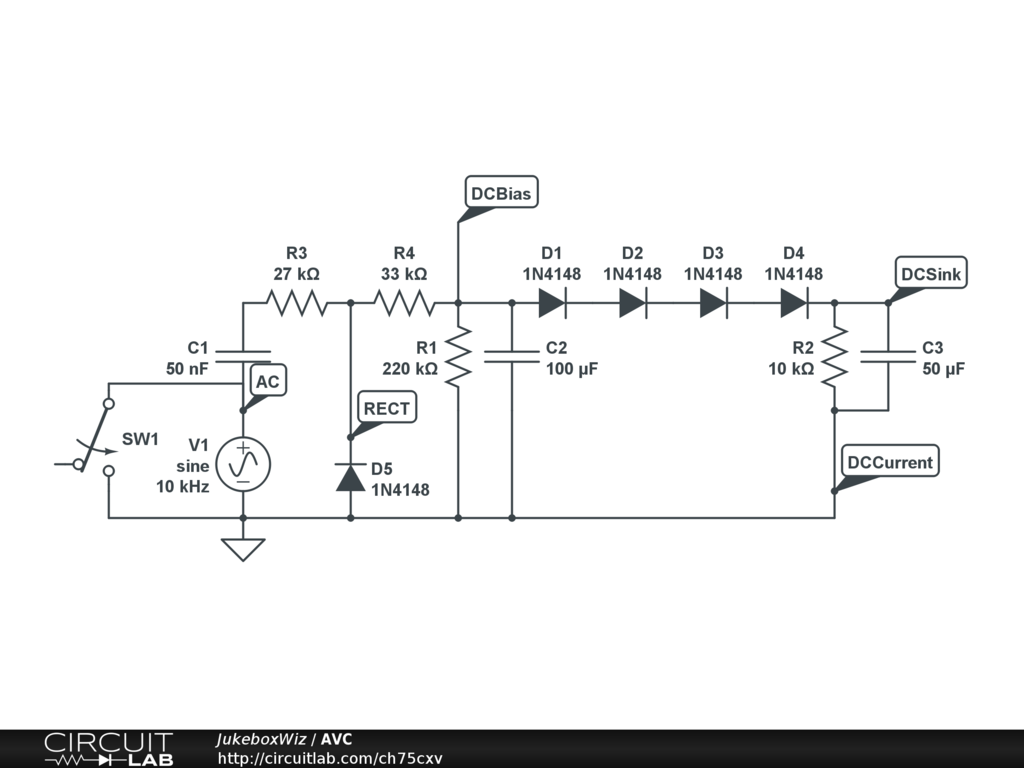

AC Bias Circuit For Diodes. Should be about a 5sec discharge for C2 once SW1 Closes
|
The plots I get are not what I'm expecting. Using the DCBias test point,I should see a fairly quick ramp-up and then when SW1 closes, A slower drop to the four (4) forward diode FWD bias in about 5 seconds. |
