Not provided.

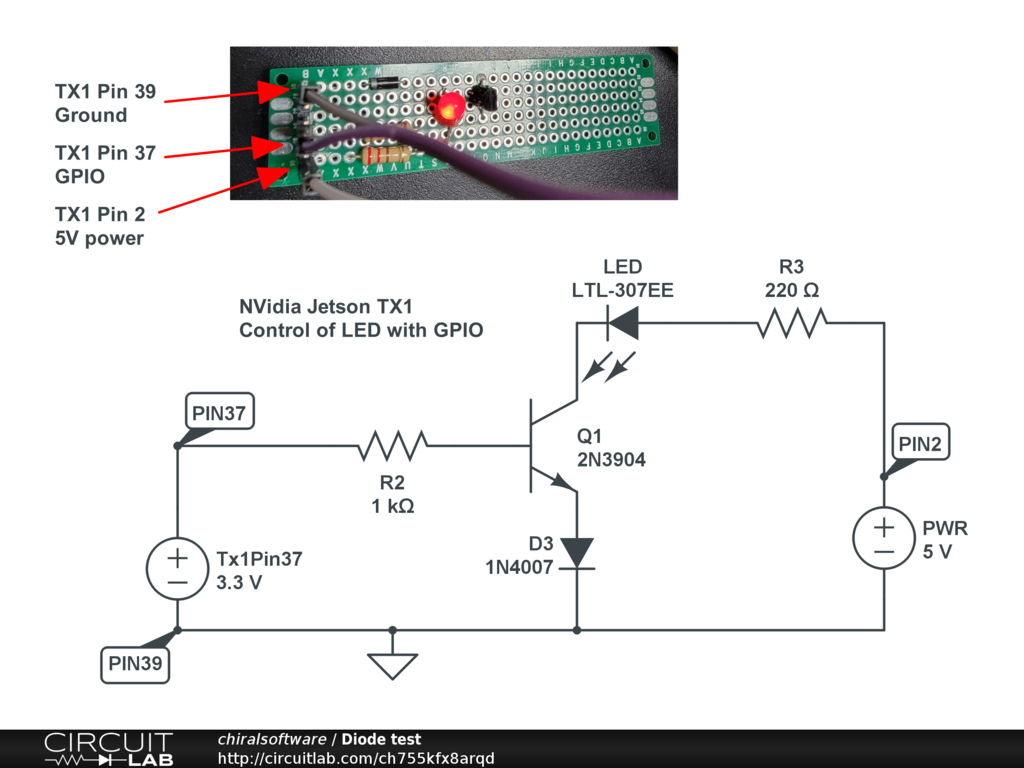

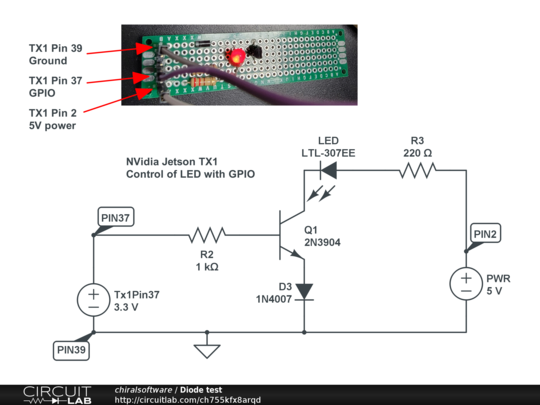

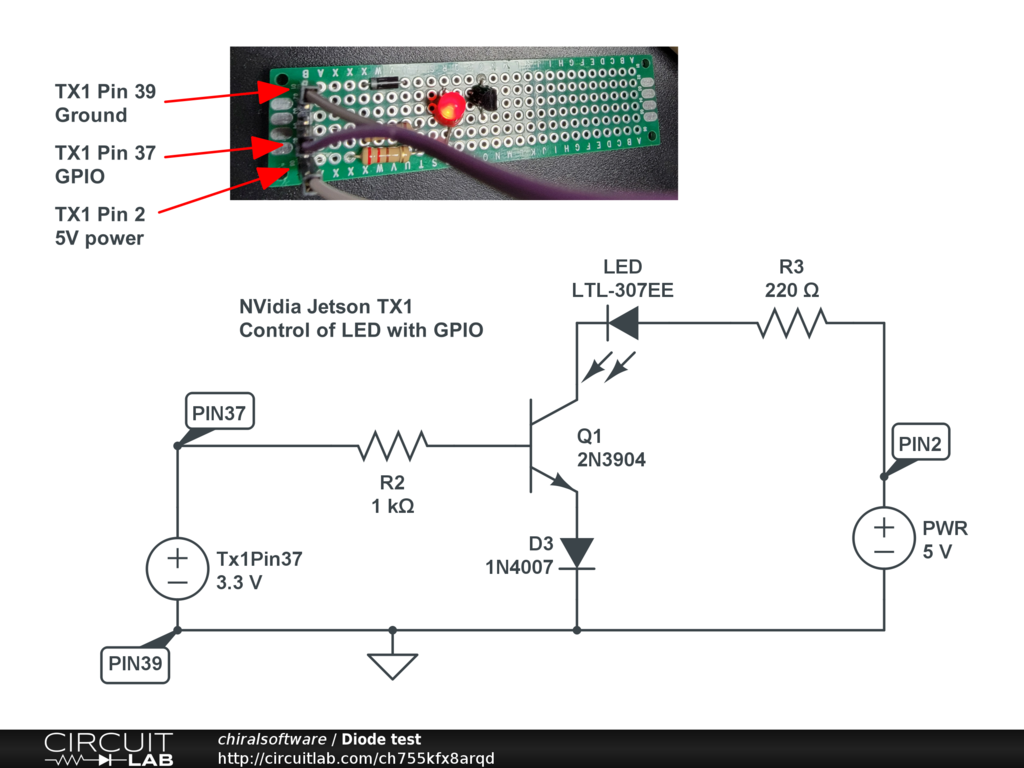

Connect the Jetson TX1 pins 2, 37 and 39 as shown and run this code:
import Jetson.GPIO as GPIO
import time
GPIO.setmode(GPIO.BCM)
GPIO.setup(26, GPIO.OUT)
GPIO.output(26, GPIO.LOW)
print("pin 37 set low")
delay = 0.4
for x in range(10):
time.sleep(delay)
GPIO.output(26, GPIO.HIGH)
print("pin 37 set HIGH: " + str(x))
time.sleep(delay)
GPIO.output(26, GPIO.LOW)
print("pin 37 set LOW " + str(x))
print("doing cleanup")
GPIO.cleanup()
print("i'm done")
