Dream-Rig Circuit 5 PUBLIC

Created by
Created April 08, 2026
Last modified April 08, 2026
Tags 5-band-eq

Summary

5-Band EQ for Guitar

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

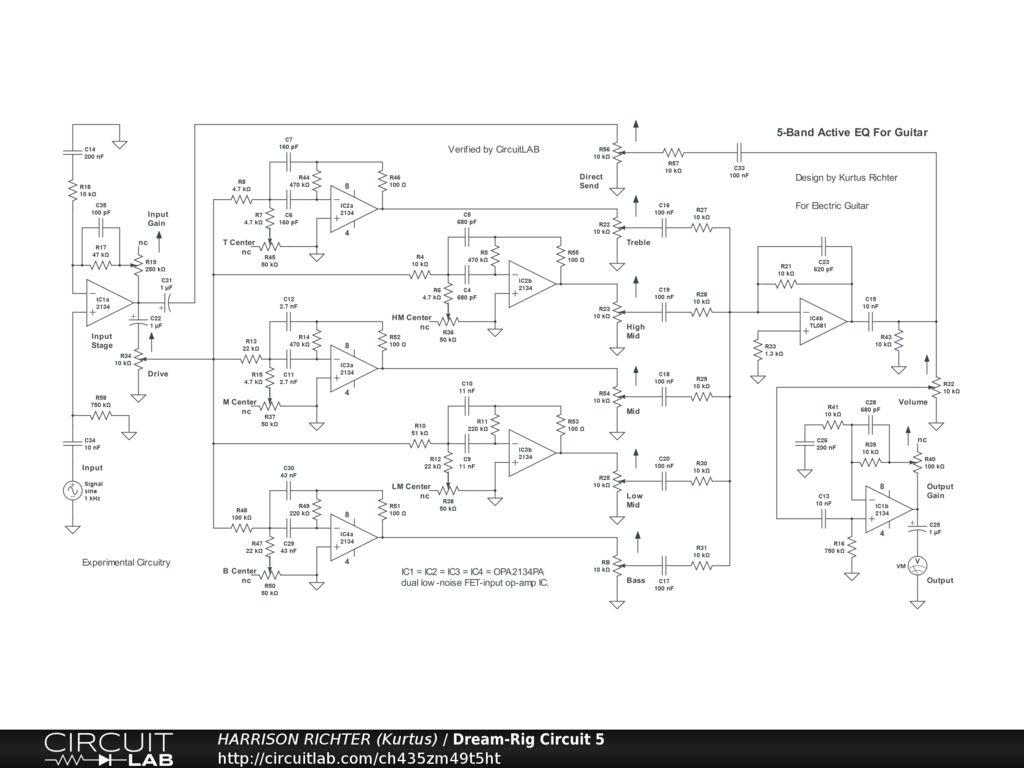

5-band equalizer circuit for guitar. Intended to follow the 3-Spring Reverb circuit of the Dream-Rig Project. For more details, see my "5-Band EQ" circuit.
