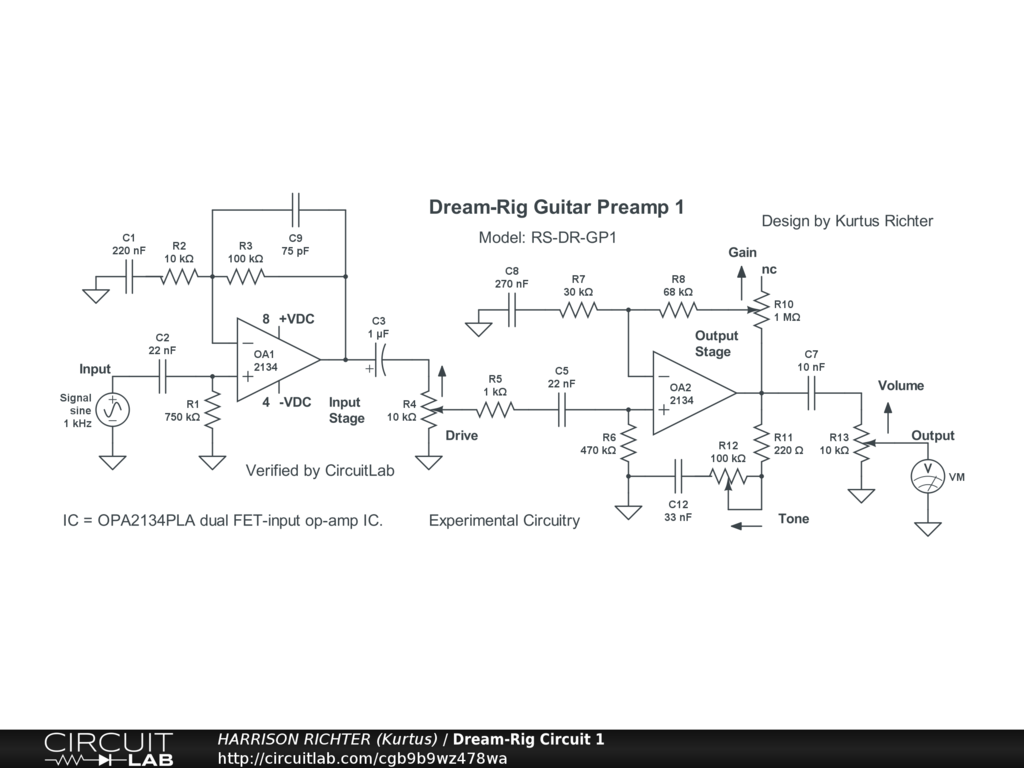

2-Stage Input Preamp Circuit for Dream-Rig Project
Input preamp circuit for Dream-Rig project. 2 stages of gain using op-amps Controls Include: Drive, Gain, Tone, and Volume. Power-supply not shown. Requires a regulated dual-polarity DC supply providing +-9VDC or +-12VDC or +-15VDC at >= 20 mA of current. Note: Higher supply voltage results in lower op-amp noise. Experimental circuitry. Breadboard test before committing to a soldered build.
