Anderton's Tube Sound Fuzz PUBLIC

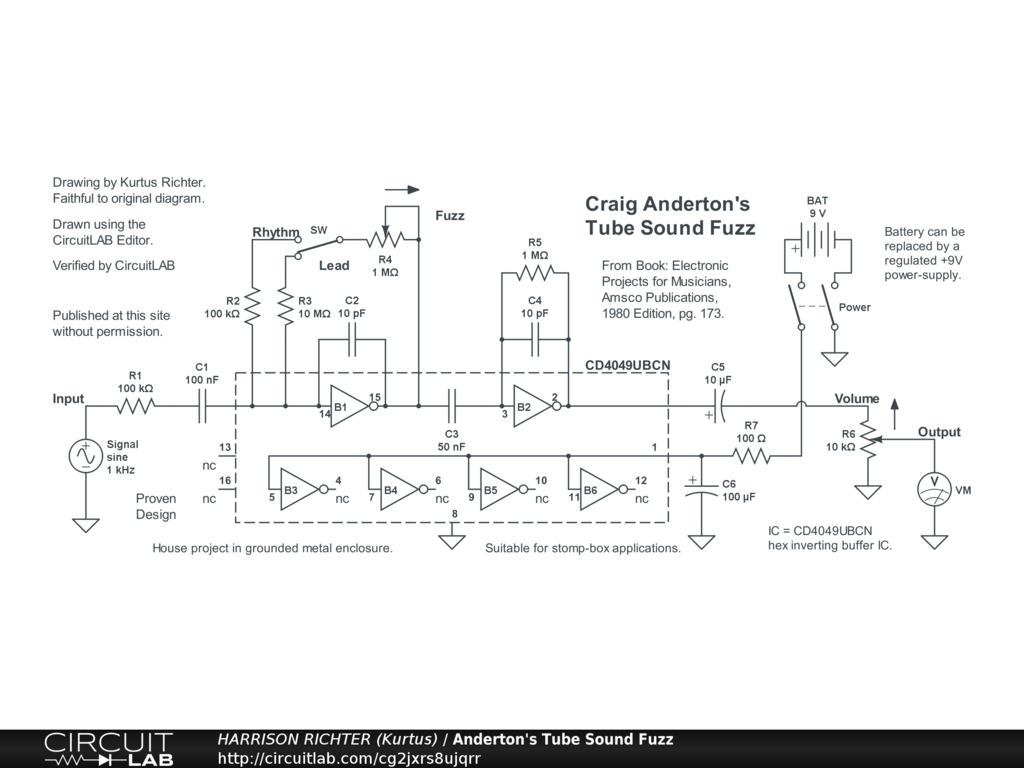

Faithful rendition of Craig Anderton's Tube Sound Fuzz Circuit

Diagram based on Craig Anderton's Tube Sound Fuzz project that appeared in his book Electronic Projects for Musicians, Amsco Publications, 1980. This diagram was drawn by Kurtus Richter using CircuitLab's schematic editor and published here at the Circuitlab site without Anderton's permission. Cannot be used for commercial purposes. Diagram is faithful to the original schematic. Verified by CircuitLab's Frequency Domain Simulation. A commercial version first appeared as the Way Huge company's "Red Llama" fuzz pedal, but many electronics enthusiasts have built this circuit or mods of it since its appearance in Anderton's book, first copyrighted in 1975 then again in 1980.
