Basic 555 Implementation PUBLIC

Created by
Created April 26, 2018
Last modified April 26, 2018
Tags 555

Summary

Basic 555 IC timer implementation.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

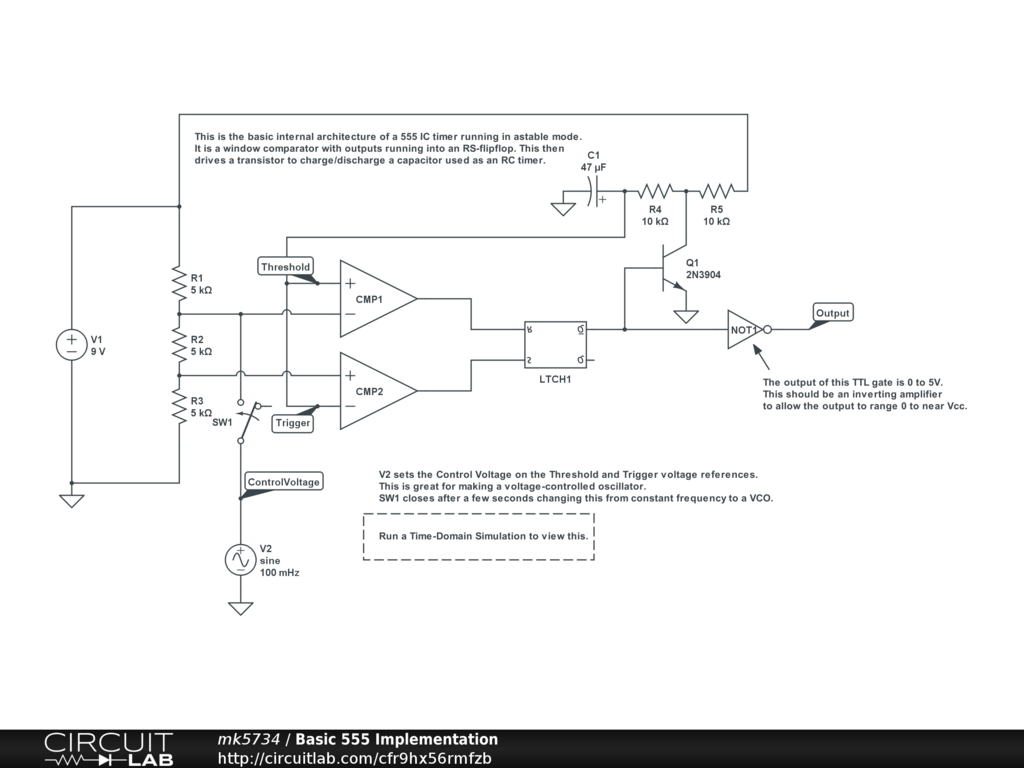

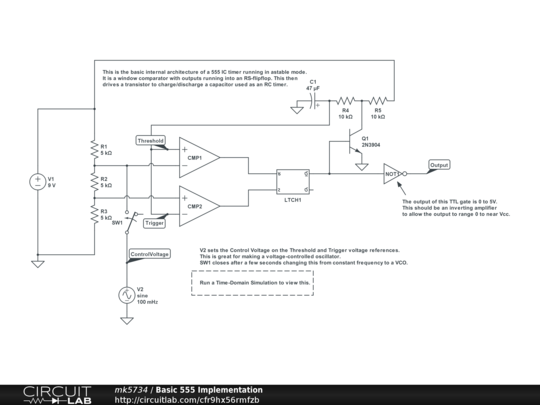

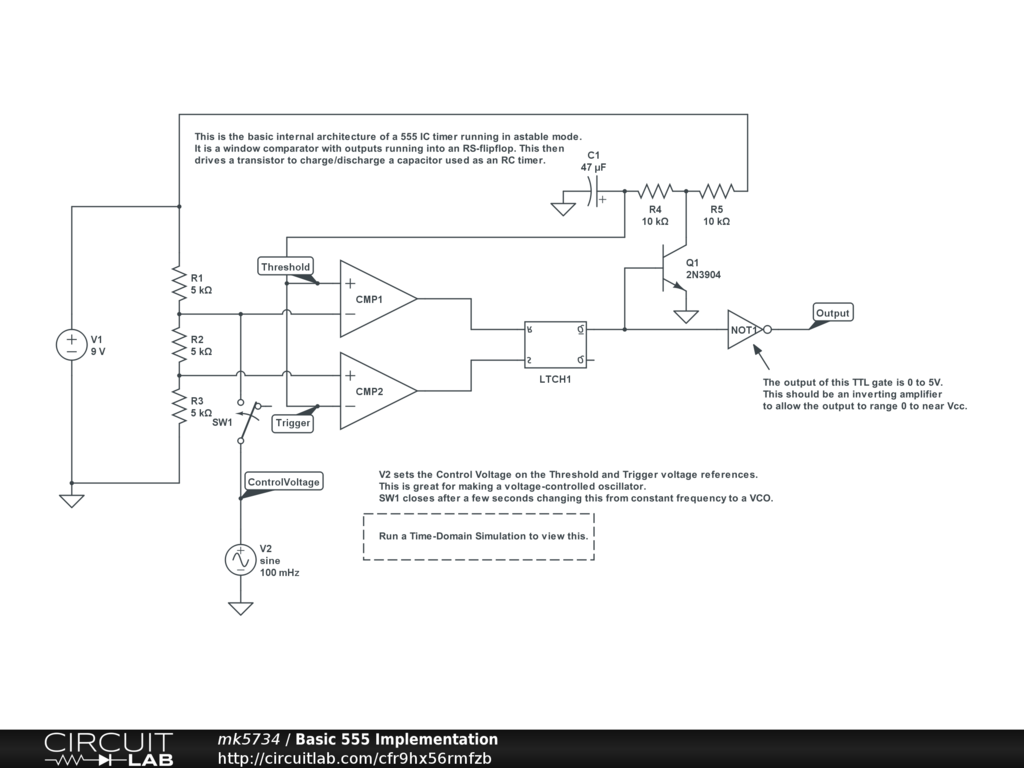

Basic 555 IC timer block architecture implementation. This demonstrates astable mode with both fixed frequency as well as voltage-controlled oscillation (VCO).
