Digital Gates AND/OR para o Projeto 1 de Circuitos II - G1 ENG1421

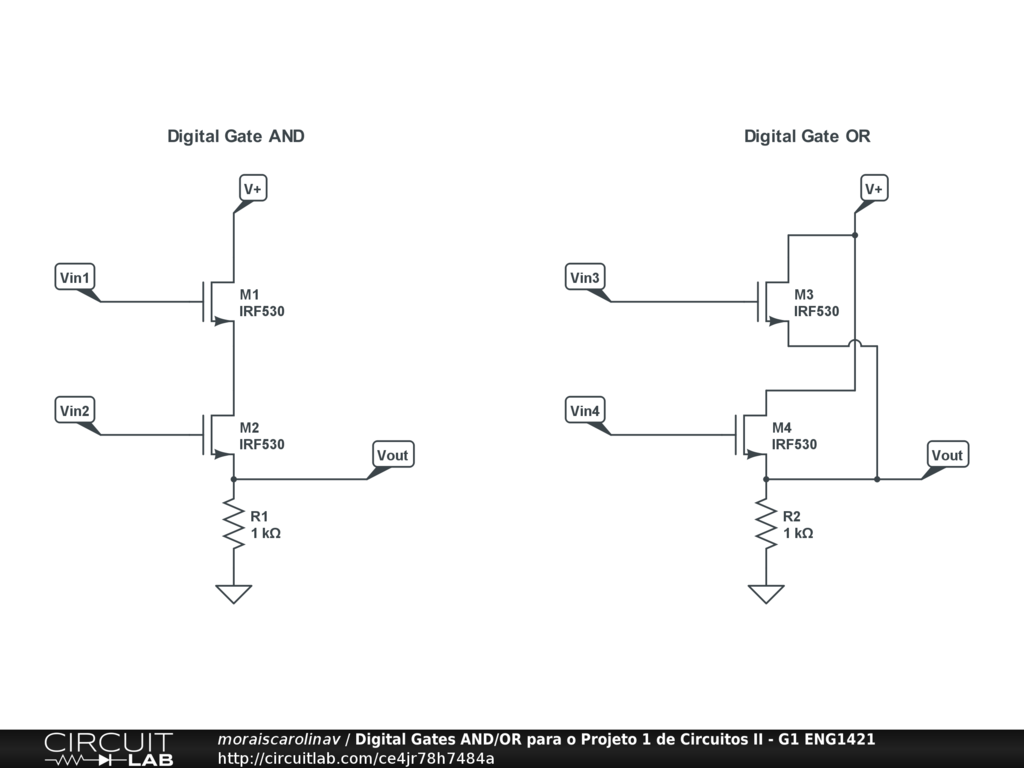

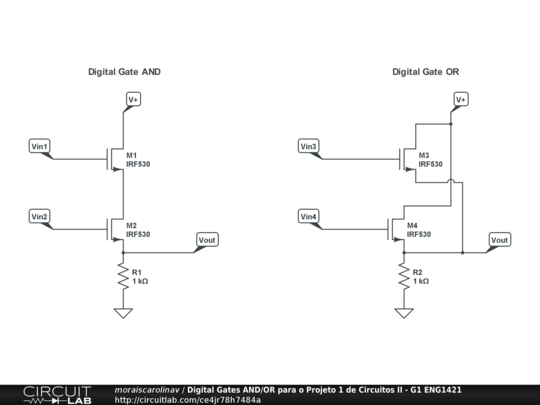

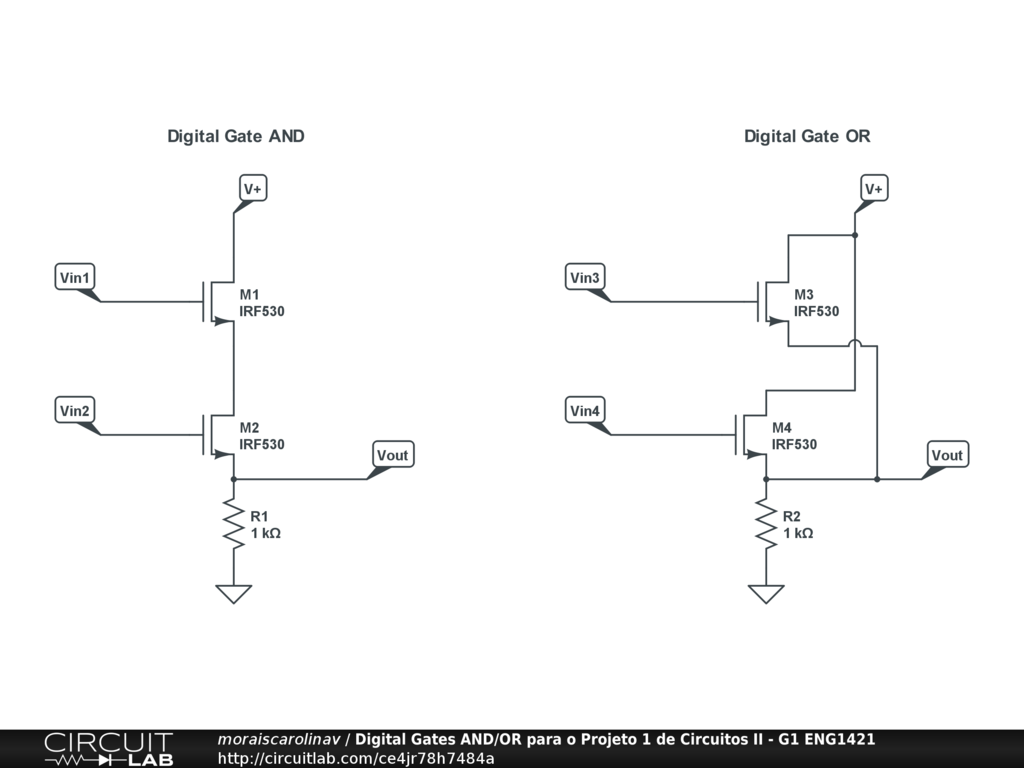

Digital Gate AND and Digital Gate OR built with N-type Mosfets
