Op Amp: Operational Range / Linear Range PUBLIC

Created by
Created February 22, 2024
Last modified February 27, 2024
Tags No tags.

Summary

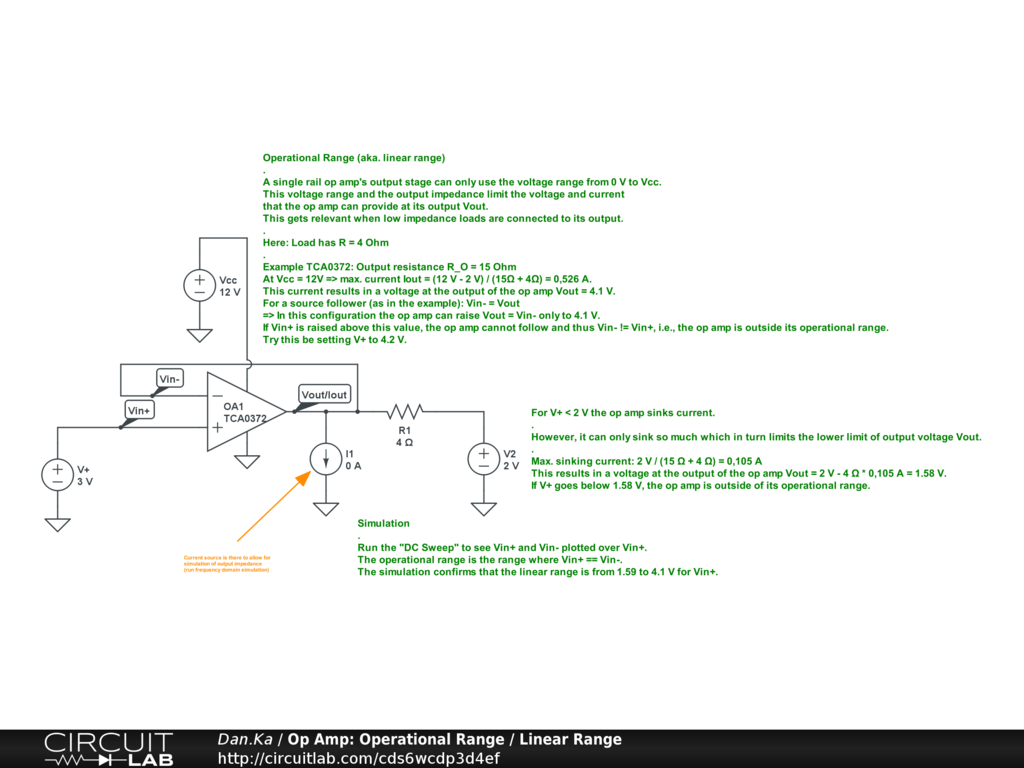

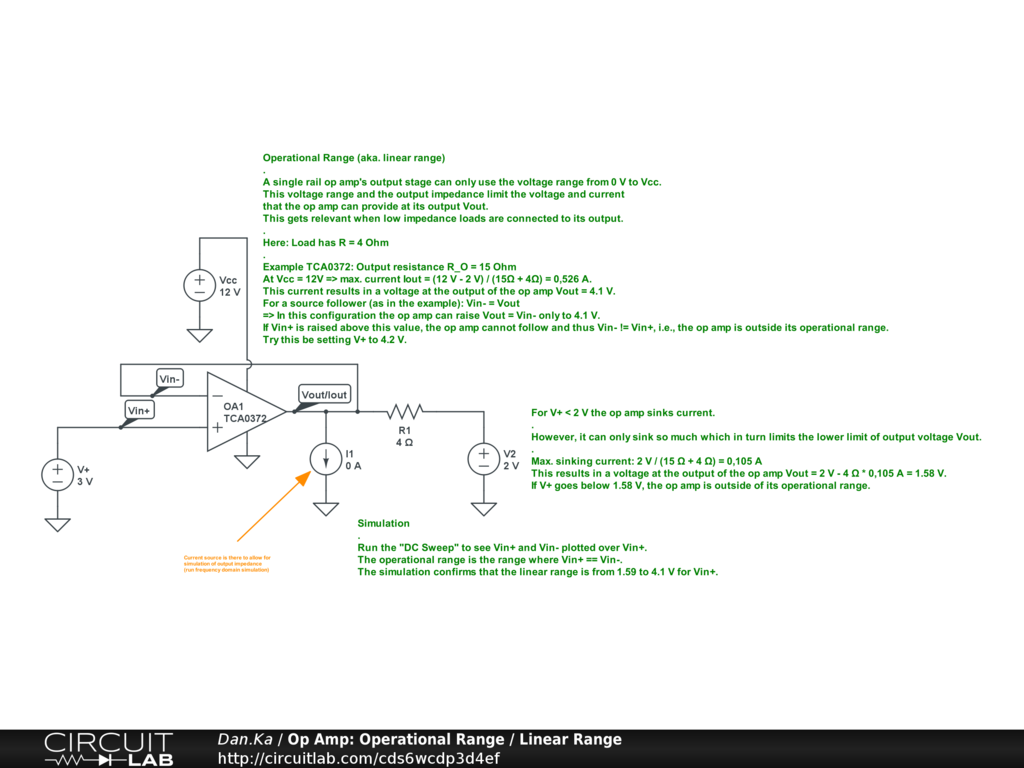

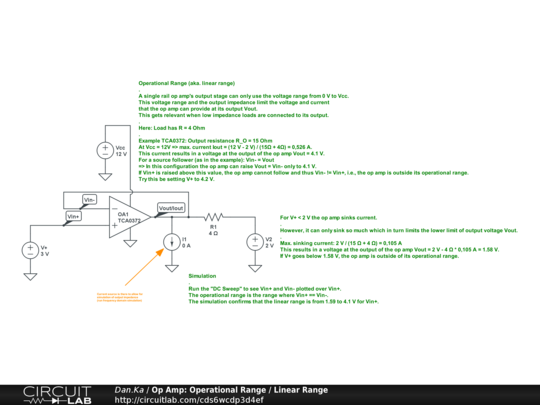

Example where output impedance limits operational range of opamp.
