SD arduino 4 servos

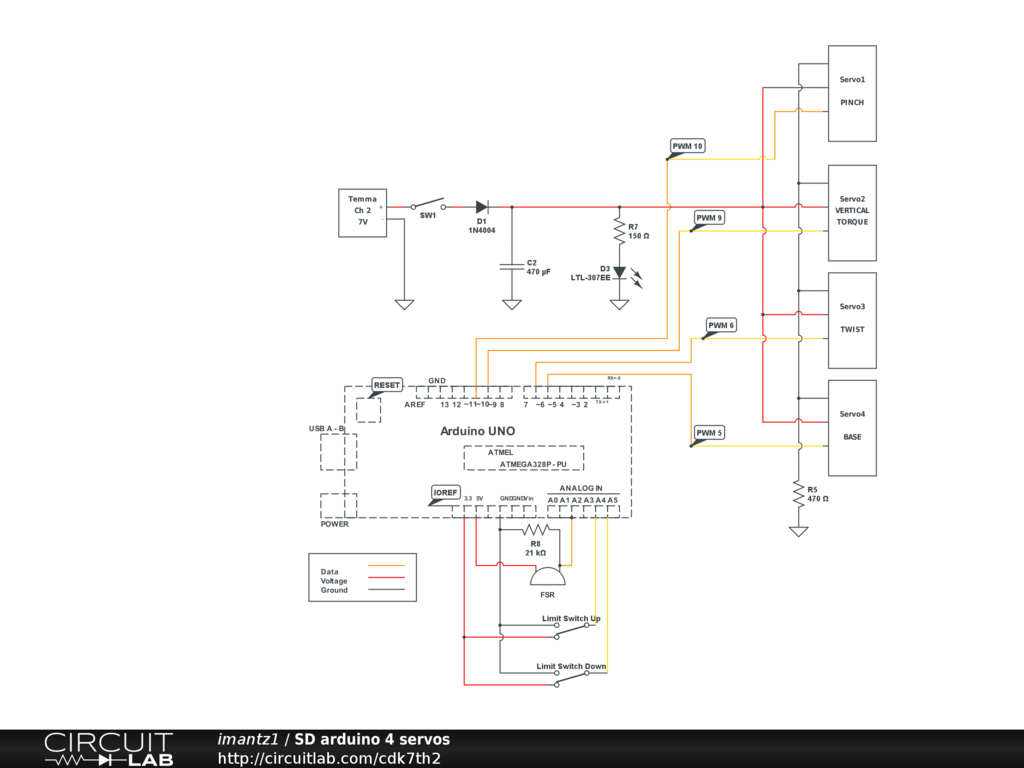

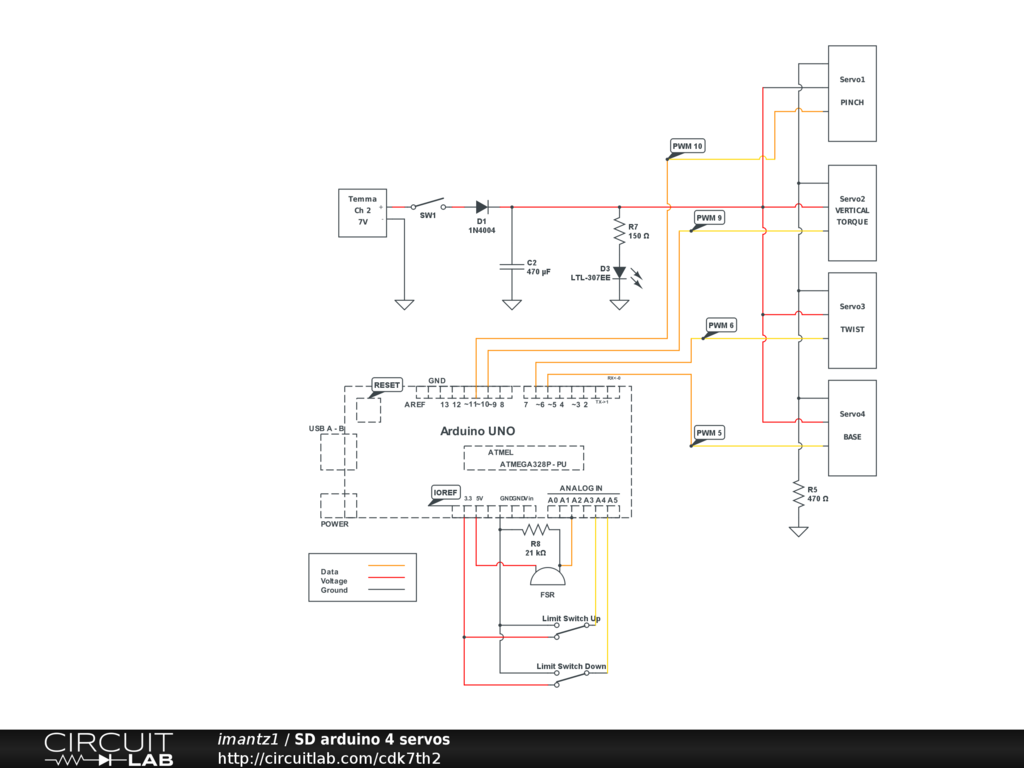

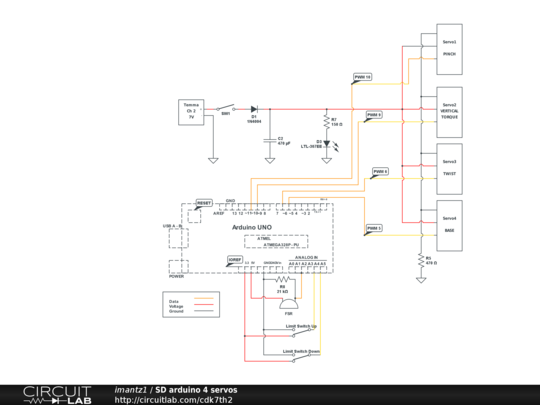

Robotic arm circuit design. Four Servos controlled with Arduino Uno. External power supply and two pressure sensors.
