Buck Converter 12to7 SW versi001a

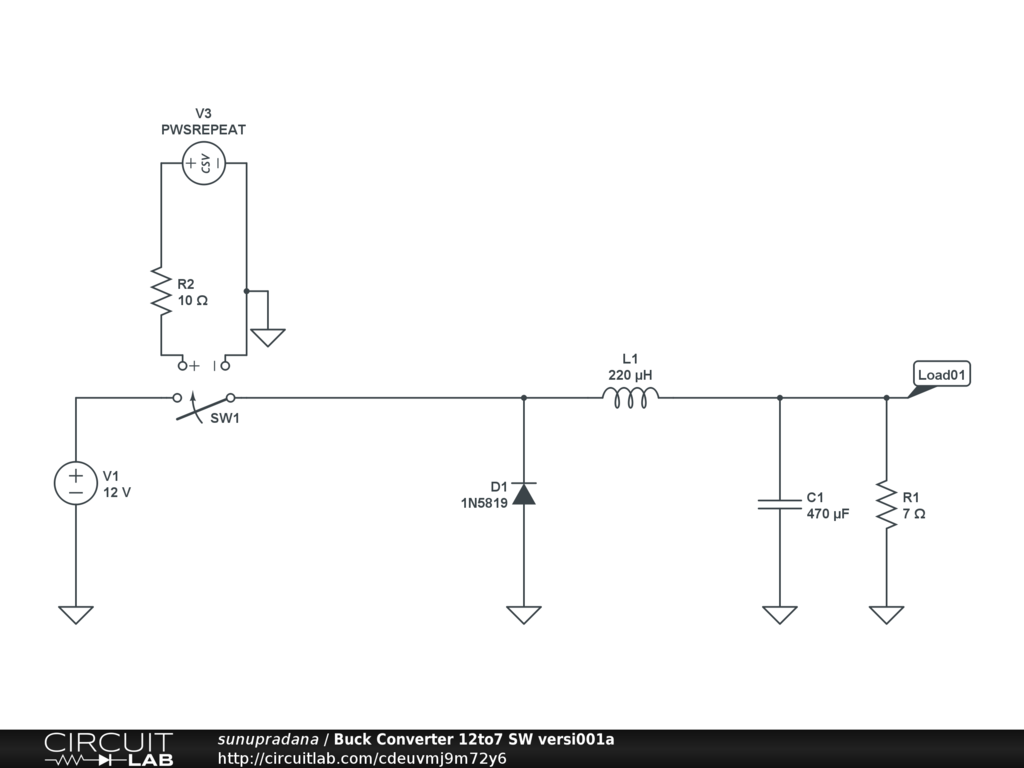

Simulasi contoh open loop 'buck converter' untuk menurunkan tegangan dari 12 Vdc ke 7 Vdc.
