Self-Connected VCCS Acts as Resistor

A Voltage Controlled Current Source (VCCS), where the current is controlled by the voltage across the VCCS element itself, acts just like a resistor.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

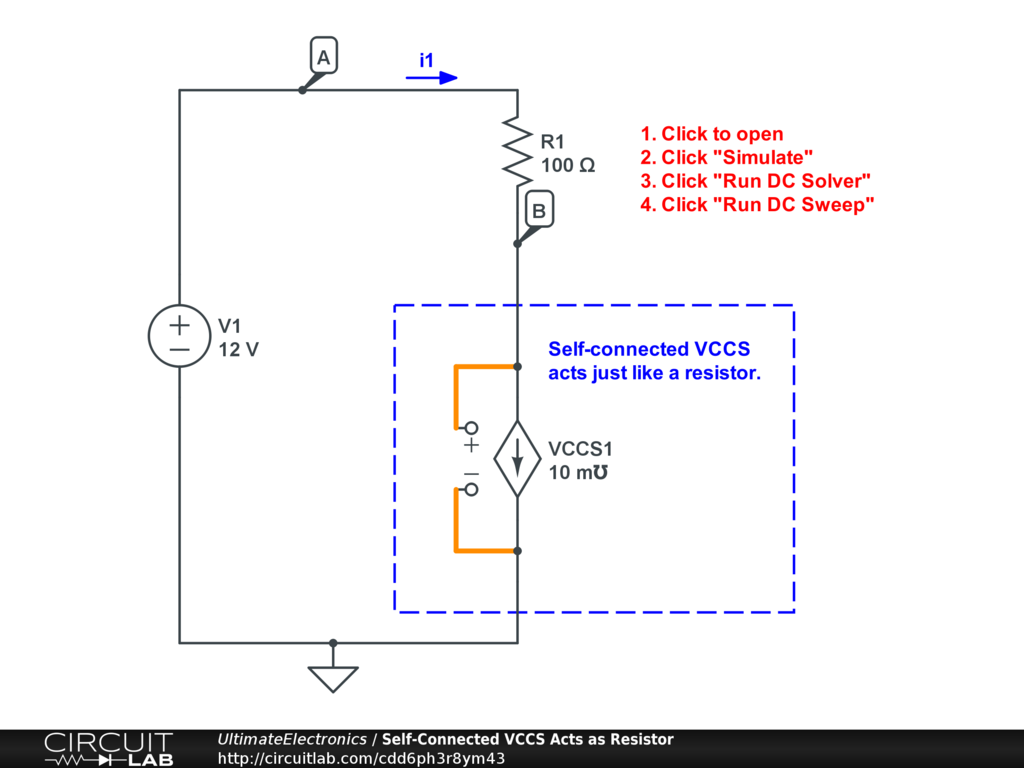

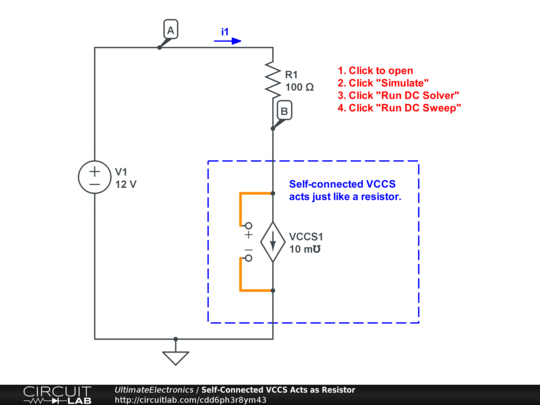

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation showing that a self-connected VCCS acts just like a resistor.
